Introducere »PCB / TCON» 7 module TCON atasate de ecran - pentru piese - pozitia PCB28




7 module TCON atasate de ecran - pentru piese - pozitia PCB28

in descriere aveti poze si lista cu toate integratele , tranzistoarele si diodele smd pe care le gasiti in acest pachet




Pe stoc: 1 buc
Numar produs: 00
pret nou:
99,0 LEI (TVA inclus ( nu suntem platitori de TVA ))

în coş:
  buc

PCB28
SRL320
ECRAN = V320BJ8-Q01 Rev.C1
GT4128 = UX3 = MEMORIE NVM
INX IN1802A = UT1 = CONTROLER
INX IN518 = UP1 = CONTROLER
INXIN633 = US1 = CONTROLER
QX1 = K72
QP3 = NM
QP1 = M7A
DP24 = DP27 = G4
DP2 = DP3 = JB
DP12 = EY
=========
FL738
ECRAN = PT320CT01-1 Ver.1.3
PCB = PT320CT01-1-XC-2
IC2 = NOVATEK NT50115D = GAMMA
IC5 = 86703A = LEVEL SHIFTER
IC3 = KV6626-LMA = PROCESOR LVDS
IC4 = P24C32C = MEMORIE NVM
IC1 = BSFCXA = CONTROLER SURSA DC-DC
D2 = D3 = D4 = D5 = SR24F
D1 = A10A
Q4 = K72
Q1 = Q3 = A1A
Q2 = 680U
T3 = T1 = S1A
T2 = 2T
=========
FL837

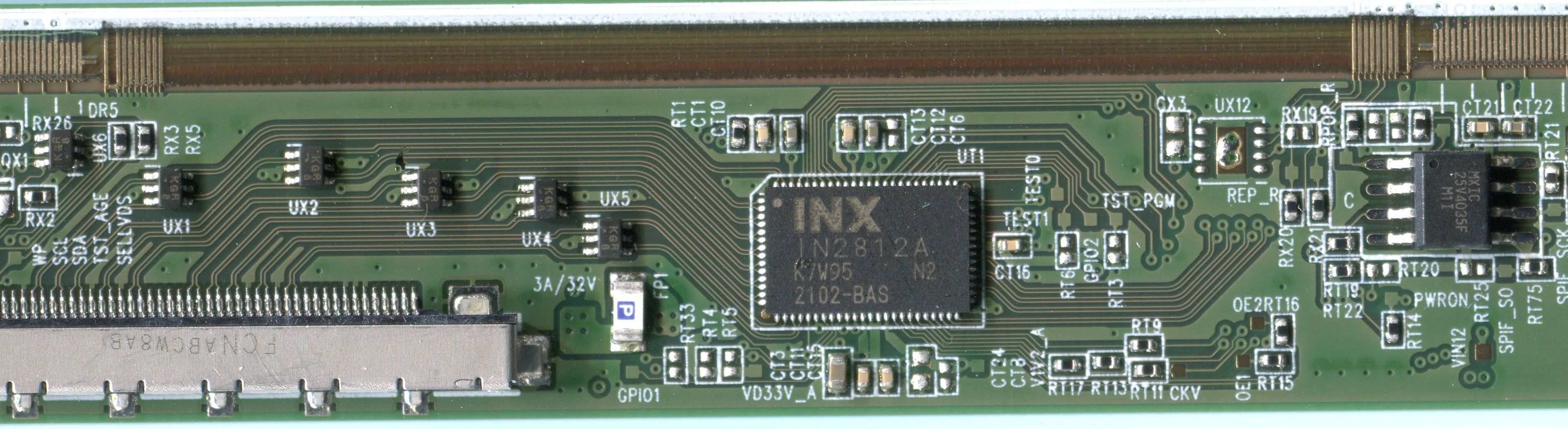

ECRAN = V400HJ6-PE1 Rev.C3
PCB = INNOLUX XC
UP1 = IN518 = CONTROLER SURSA DC-DC
UT1 = INX IN2812A = PROCESOR LVDS
UT2 = 25V403SF = MEMORIE FLASH
UX1 ~ UX7 = KG
DP4 = DP2 = JB
QP2 = R1P
QP1 = K2F
DP12 = EY
=========
SRL328
ECRAN = T320XVN02.G
PCB = 32T24 COT CTRL
U201 = AUO P303-19 = CONTROLER SURSA DC-DC
U400 = AUO-11311 = PROCESOR LVDS
U402 = GT432B-2ZLI = MEMORIE NVM
U101 = G1564
U701 = AUO S302-1V = LEVEL SHIFTER
U601 = AUO G201-1D = GAMMA
D203 = D207 = SX34
D206 = 14
D201 = 26
Q205 = Q206 = 25L03
Q202 = D90
Q207 = N13R
Q805 = R1P
Q806 = R2F
Q100 = N6
D103K = ZA
Q211 = FA
D106 = LG
D110 = C96
=========
FL451
ECRAN = PT320AT01-3 Ver.1.1
PCB = PT320AT01-3-XC-2
U3 = NOVATEK NT50115B = GAMMA
U1 = HIMAX HX8872-F = PROCESOR LVDS
U2 = 5562A
D13 = 35
D1 = A10A
D5 = SS34
D6 = SS24
D9 = A20A
D2 = D3 = D4 = A7
Q2 = 078K
D8 = D11 = FAP / G0
D7 = FBR
D10 = 35
Q1 = Q3 = 702
DT1 = DT2 = DT3 = DT4 = C96PJ
IC2 = 3104
IC1 = FM24C32D = MEMORIE NVM
=========
MG748
ECRAN = CV580U1-T01 Rev.01
PCB = CV580U1-T01-XL-1
IC6 = 431
IC1 = 1632 = GAMMA
IC3 = 1583
T1 = T3 = 1P
T2 = T4 = 2F
IC2 = 25DB0ASTIG = MEMORIE FLASH
Q3 = Q4 = 702
=========
SRL22
ECRAN = PT320AT02-2 Ver.1.0
PCB = PT320AT02-2-XC-1
U2 = 2509 = GAMMA
U1 = HKTH01 = PROCESOR LVDS
U3 = 86703A = LEVEL SHIFTER
IC1 = P24C32C = MEMORIE NVM
D2 = D5 = K4
T2 = M2A
T1 = AL
D6 = D3 = D4 = JB
D1 = 929A
=========
