Introducere »PCB / TCON» 7 module TCON atasate de ecran - pentru piese - pozitia PCB22




7 module TCON atasate de ecran - pentru piese - pozitia PCB22

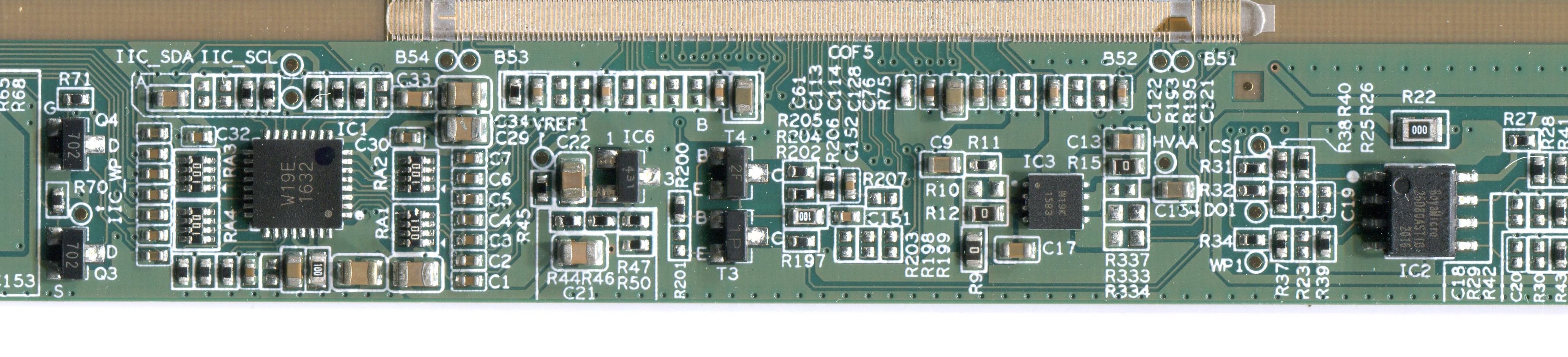

in descriere aveti poze si lista cu toate integratele , tranzistoarele si diodele smd pe care le gasiti in acest pachet




Pe stoc: 1 buc
Numar produs: 00
pret nou:
99,0 LEI (TVA inclus ( nu suntem platitori de TVA ))

în coş:
  buc

PCB22
SRL23
V320BJ8-Q01 Rev.C1
GT4128 = UX3 = MEMORIE NVM
INX IN1802A = UT1 = CONTROLER
INX IN518 = UP1 = CONTROLER
INXIN633 = US1 = CONTROLER
QX1 = K72
QP3 = NM L
QP1 = M7A
DP24 = DP27 = F4 / H3
DP2 = DP3 = JB
DP12 = EY
================

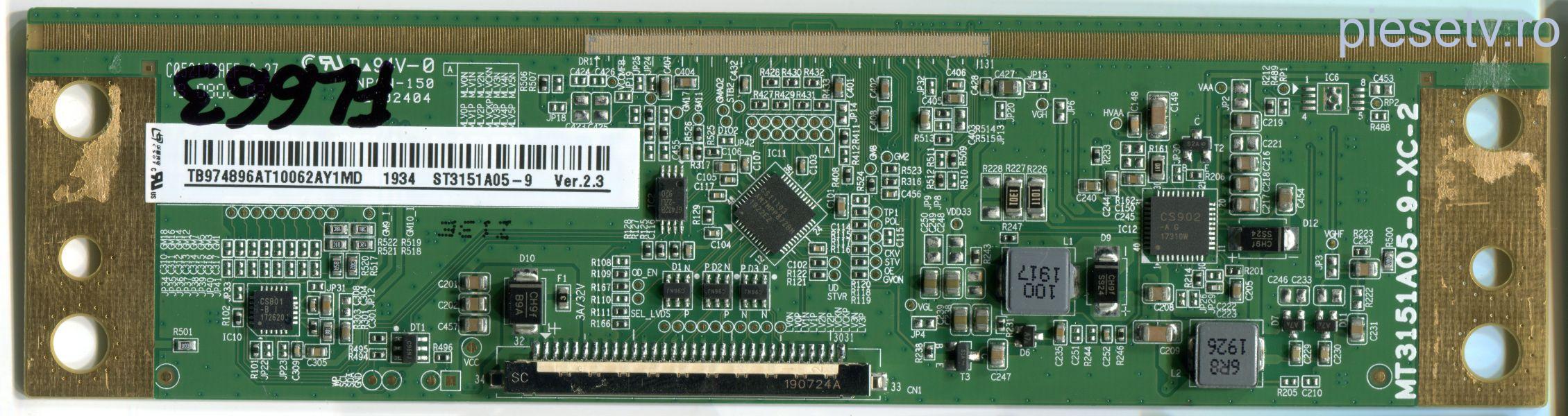

FL663
ECRAN = ST3151A05-9 Ver.2.3
PCB = MT3151A05-9-XC-2
IC10 = CS801-B I / 172620J
IC2 = GT432B-22ZLI
IC11 = CS11103
IC12 = CS902-A G
DT1 = D1 = D2 = D3 = C96NJ
D10 = CH9f / B9A
D9 = D12 = CH9f / SS24
D6 = A7 / A
T3 = S1A / Z
T2 = S2A / 6
=================
SRL329
ECRAN =
LSC320AN10-H07
PCB = 16Y_GH11MB7S2LV0.2
464F = MEMORIE NVM
SM4186 = PROCESOR LVDS
SS34 = DIODA
=================
FL405
ECRAN = T320XVN02.G
PCB = 32T24 C0T CTRL
U201 = AUO P303-19 = CONTROLER SURSA DC-DC
U400 = AUO-11311 = PROCESOR LVDS
U402 = GT432B = MEMORIE NVM
U101 = i7814HP
U701 = AUO S302-1V = LEVEL SHIFTER
U601 = AUO G201-1D = GAMMA
D203 = D207 = SX34
D206 = 14
D201 = E8
Q205 = Q206 = W5
Q202 = D9
Q207 = 917 / N13R / LS823
Q805 = R1P
Q806 = R2F
Q100 = NA2F9
D103K = ZA
Q211 = D1
D106 = LG
D110 = X4
=================
FL619
ECRAN = VVH32L147G22LTY
PCB = CV315PW07S
IC101 = HX8861-K = PROCESOR LVDS
IC102 = 24C16A = MEMORIE NVM
IC503 = iD8785 = STABILIZATOR
IC501 = AAT1176B = CONTROLER SURSA DC-DC
D505 = D504 = D502 = B8 / 3
=================
FL848
ECRAN = CV580U1-T01 Rev.01
PCB = CV580U1-T01-XL-1
IC6 = 431
IC1 = 1632
IC3 =1583
T1 = T3 = 1P
T2 = T4 = 2F
IC2 = 25DB0ASTIG = MEMORIE FLASH
Q3 = Q4 = 702
================
ECRAN = V500HJ1-PE8 Rev.C1
PCB = V500HJ1-XCME1
UG1 = CM603 = GAMMA
UG2 = Us5507P
UP1 = CM508 = CONTROLER SURSA DC-DC
UP2 = Q02T / 953-12
UT2 = GT4128 = MEMORIE NVM
UT1 = CM2801C = PROCESOR LVDS
UX1 = UX2 = UX3 = UX4 = UX5 = UX6 = C072N
QT1 = K7K
DP7 = DP2 = JB
QP1 = 2F
QP2 = K1P
DP11 = DP12 = 352 / B3408
