Introducere »PCB / TCON» 7 module TCON atasate de ecran - pentru piese - pozitia PCB21




7 module TCON atasate de ecran - pentru piese - pozitia PCB21

in descriere aveti poze si lista cu toate integratele , tranzistoarele si diodele smd pe care le gasiti in acest pachet




Pe stoc: 1 buc
Numar produs: 00
pret nou:
99,0 LEI (TVA inclus ( nu suntem platitori de TVA ))

în coş:
  buc

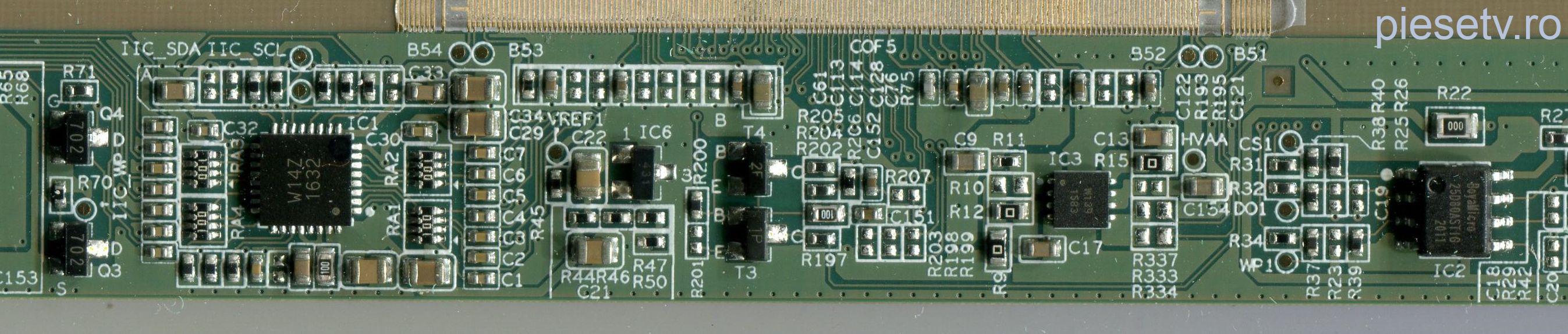

PCB21
MG710
ECRAN = CV580U1-T01 Rev.01
PCB = CV580U1-T01-XL-1
IC6 = 431
IC1 = W14Z / 1632
IC3 = W139 / 1583
T1 = T3 = 1P
T2 = T4 = 2F
IC2 = 25DB0ASTIG = MEMORIE FLASH
Q3 = Q4 = 702
==================
MG636
ECRAN = LC390TA2A 09
PCB = PANDA385L
IC6 = uS5505A
IC5 = 5562A = CONTROLER SURSA DC-DC
IC3 = i7921 = GAMMA
IC4 = 9001F
IC2 = BL24C32A = MEMORIE NVM
IC1 = MST7500M = PROCESOR LVDS
Q1 = KFL
D1 = D2 = D3 = T9
D4 = su
D5 = SL
=================

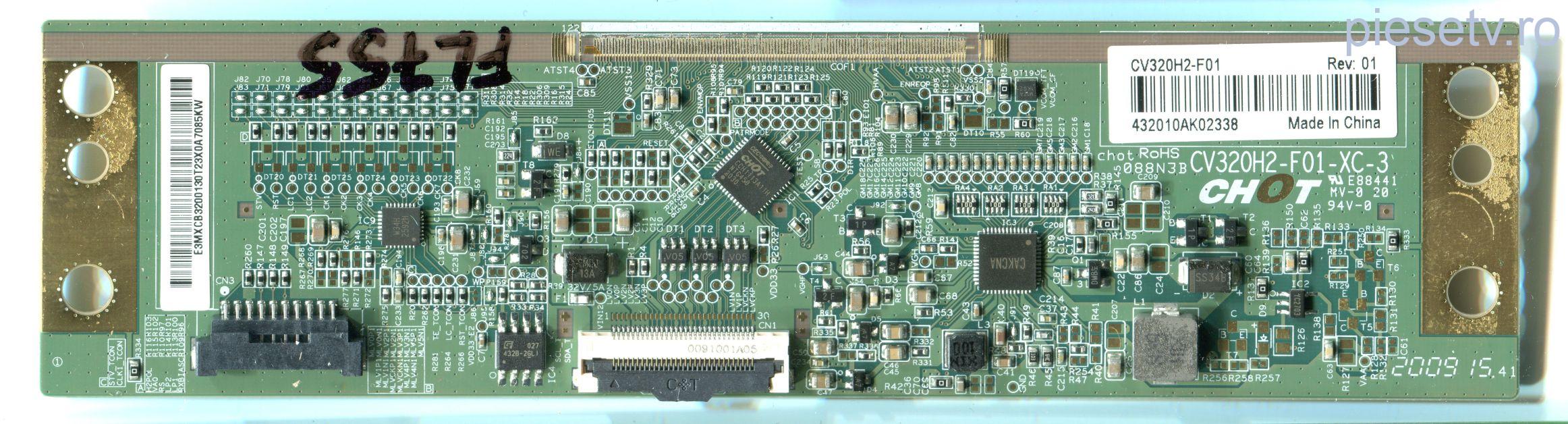

FL755
ECRAN = CV320H2-F01 Rev.01
PCB = CV320H2-F01-XC-3
IC9 = 2592H = LEVEL SHIFTER
IC4 = 432B-2GLI = MEMORIE NVM
IC1 = CHOT CCH1113A11H = PROCESOR LVDS
IC3 = CAKCNA = CONTROLER SURSA DC-DC + GAMMA
IC2 = YC2703
D2 = SS34B
D8 = WE
T8 = T4 = T2 = 2F
T3 = T1 = 1P
D3 = D4 = D5 = A7
Q3 = 702
Q1 = DMB
D1 = SMBJ
DT1 ~ DT3 = V05
DT19 = M12A
===================
FL659
ECRAN = V320BJ8-Q01 Rev.C1
GT4128 = UX3 = MEMORIE NVM
INX IN1802A = UT1 = CONTROLER
INX IN518 = UP1 = CONTROLER
INXIN633 = US1 = CONTROLER
QX1 = K72
QP3 = NM L
QP1 = M7A
DP24 = DP27 = F4 / H3
DP2 = DP3 = JB
DP12 = EY
===============
XT145
ECRAN = V500HJ1-PE8 Rev.C1
PCB = V500HJ1-XCME1

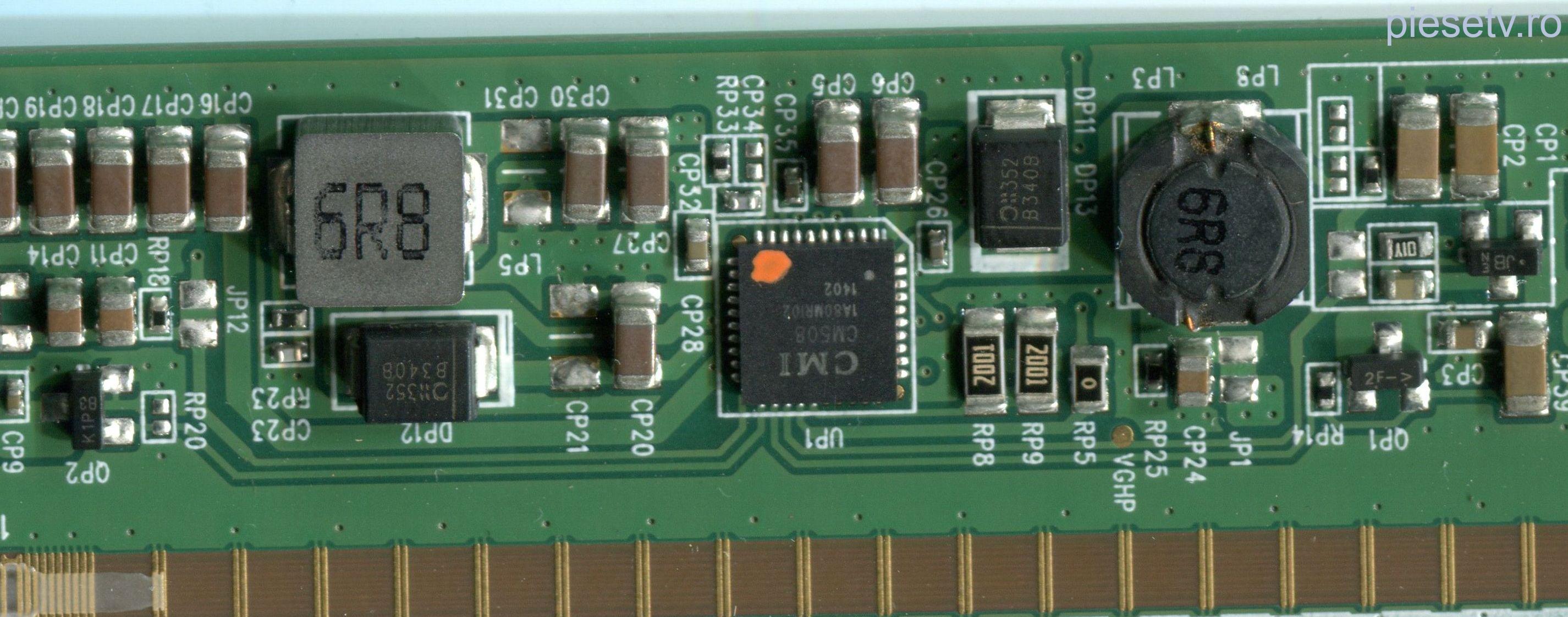

UG1 = CM603 = GAMMA
UG2 = Us5507P
UP1 = CM508 = CONTROLER SURSA DC-DC
UP2 = Q02T / 953-12
UT2 = GT4128 = MEMORIE NVM
UT1 = CM2801C = PROCESOR LVDS
UX1 = UX2 = UX3 = UX4 = UX5 = UX6 = C072N
QT1 = K7K
DP7 = DP2 = JB
QP1 = 2F
QP2 = K1P
DP11 = DP12 = 352 / B3408
===============
XT15
ECRAN = LSC320AN09-E02
PCB = 16Y_GH11MB7S4LV0.3

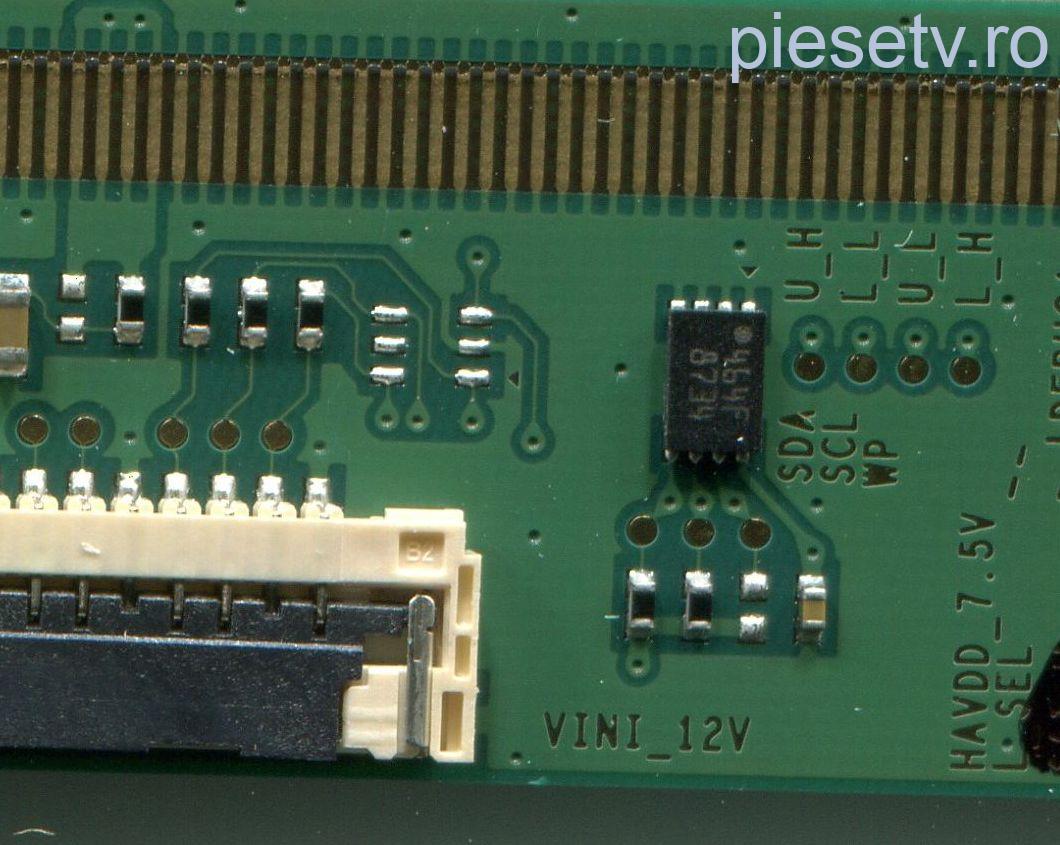

464F = MEMORIE NVM
SM4186 = PROCESOR LVDS
S34 = DIODA
==============

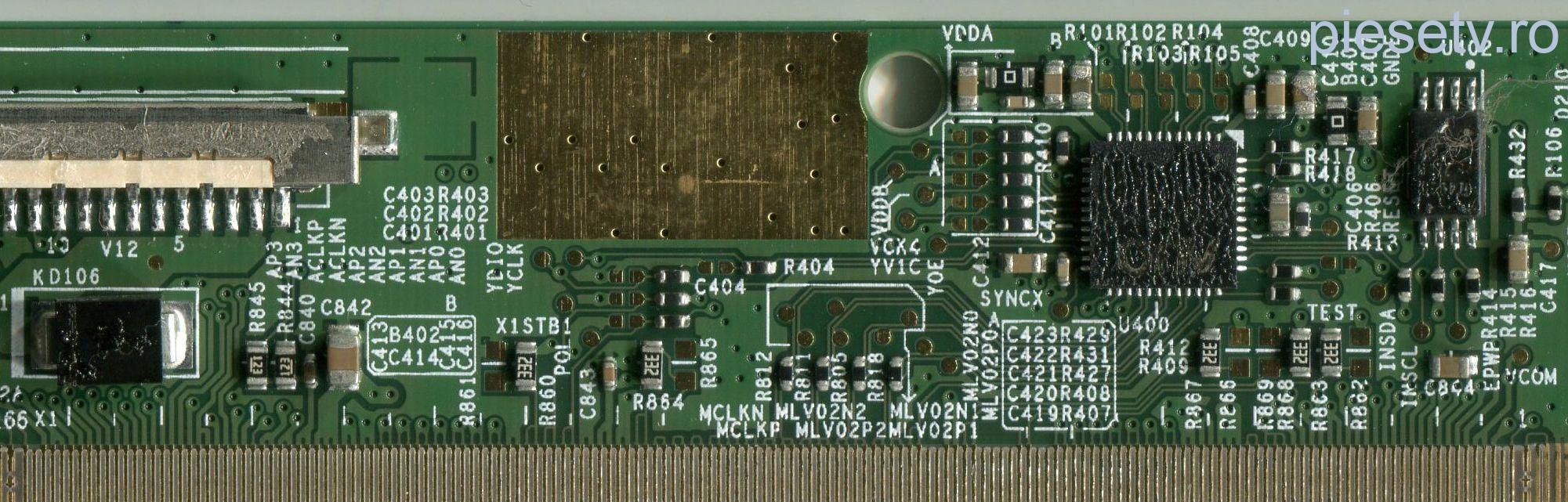

FL571
ECRAN = T320XVN02.G
PCB = 32T24 C0T CTRL
U201 = AUO P303-19 = CONTROLER SURSA DC-DC
U400 = AUO-11311 = PROCESOR LVDS
U402 = GT432B = MEMORIE NVM
U101 = G1564
U701 = AUO S302-1V = LEVEL SHIFTER
U601 = AUO G201-1D = GAMMA
D203 = D207 = SK34
D206 = 14
D201 = 26
Q205 = Q206 = W5
Q202 = AA6
Q207 = D1664 / LS823
Q805 = R1P
Q806 = R2F
Q100 = N6
D103K = ZA
Q211 = 7P6
D106 = LG
D110 = X4
==============
