Introducere »PCB / TCON» 7 module TCON atasate de ecran - pentru piese - pozitia PCB20
PCB20
FL608
ECRAN = LSC320AN10-H03
PCB = 16Y_GH11MB7S4LV0.2
464F / 8942 = MEMORIE NVM
SM4186 = PROCESOR + CONTROLER SURSA DC-DC
==============

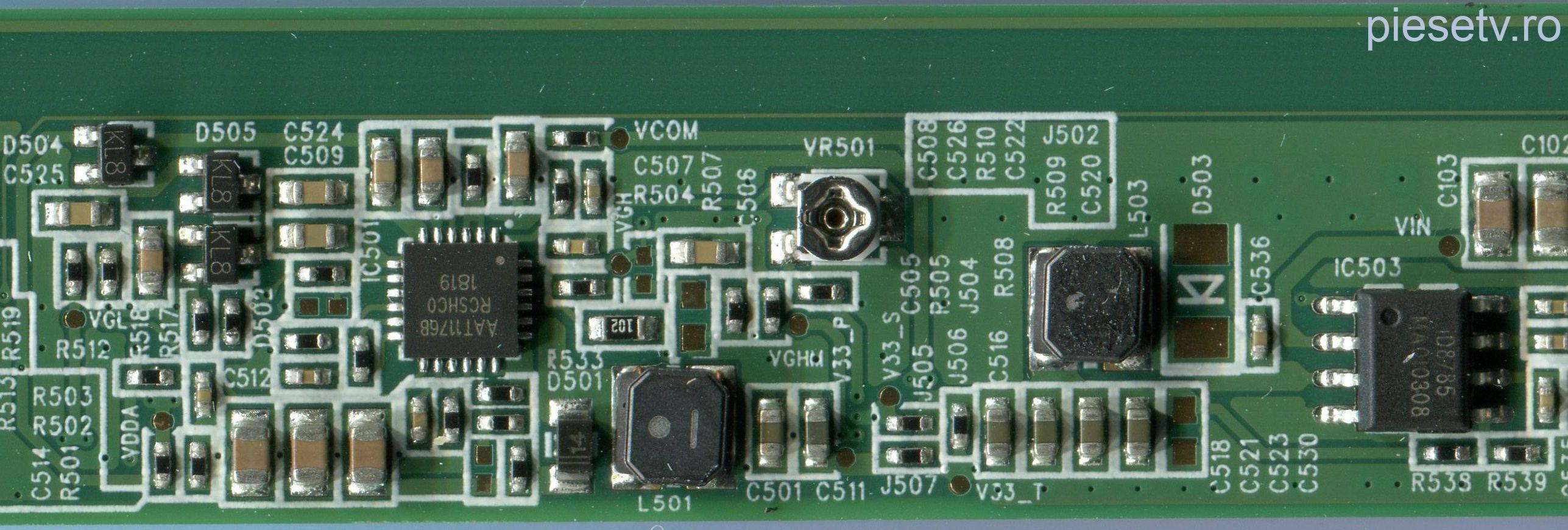

FL420
ECRAN = VVH32H147G22LTY
PSB = CV315PW07
IC501 = AAT1176B = CONTROLER SURSA DC-DC
IC503 = iD8785 = STABILIZATOR
IC102 = 4G16 = MEMORIE NVM
IC101 = HX8861-K = PROCESOR LVDS
D504 = D505 = D502 = KL8
D501 = 14
==============

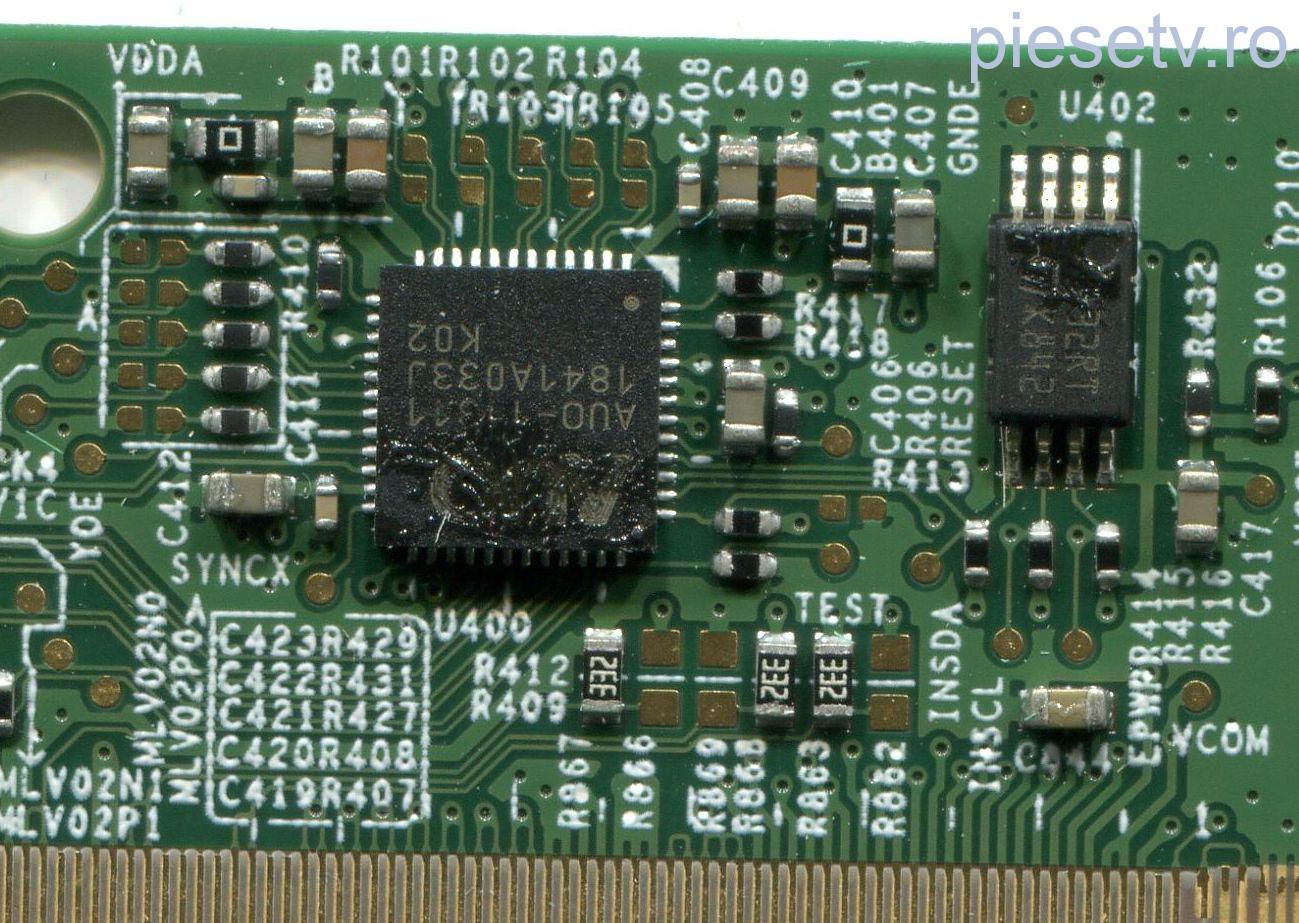

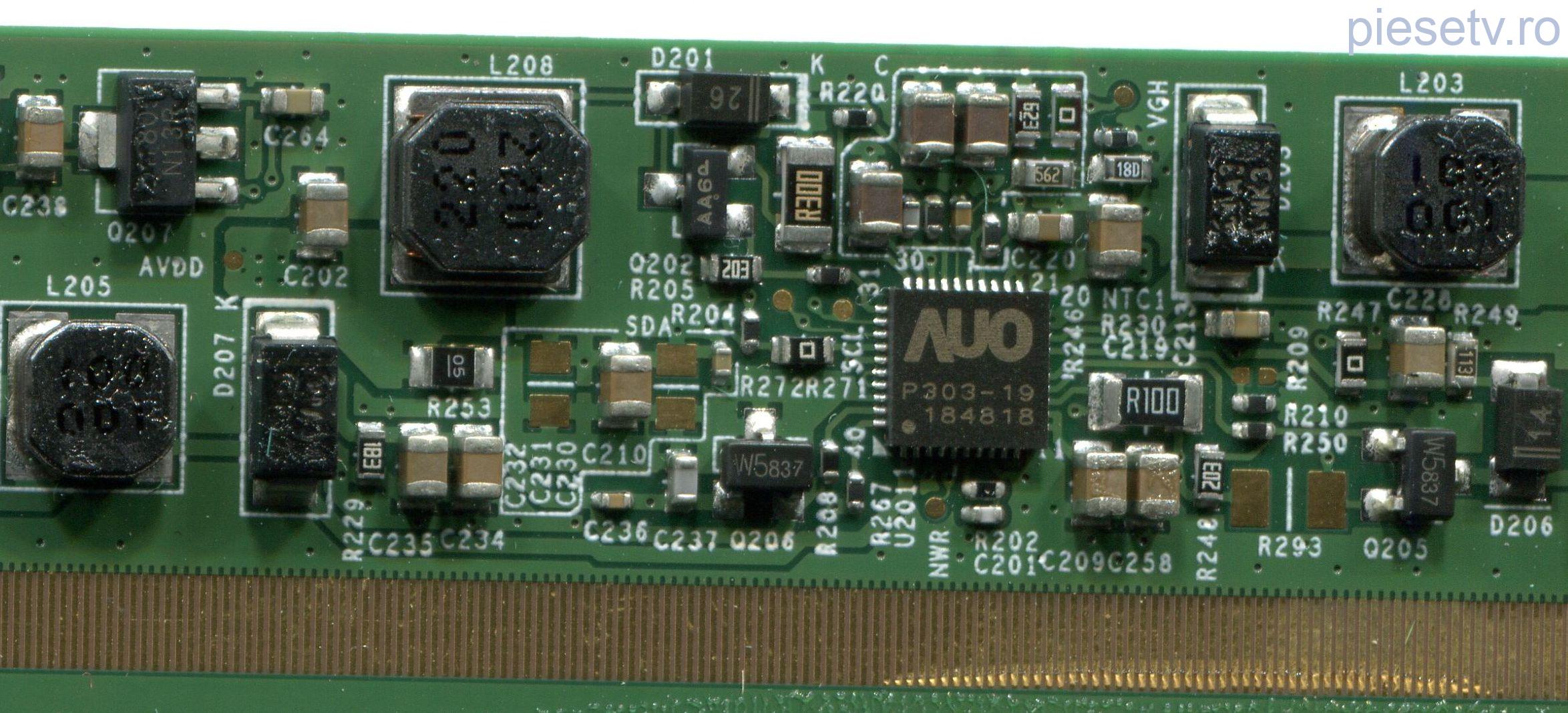

FL406
ECRAN = T320XVN02.G
PCB = 32T24 C0T CTRL
U201 = AUO P303-19 = CONTROLER SURSA DC-DC
U400 = AUO-11311 = PROCESOR LVDS
U402 = GT432B = MEMORIE NVM
U101 = G1564
U701 = AUO S302-1V = LEVEL SHIFTER
U601 = AUO G201-1D = GAMMA
D203 = D207 = SK34
D206 = 14
D201 = 26
Q205 = Q206 = W5
Q202 = AA6
Q207 = N13R
Q805 = R1P
Q806 = R2F
Q100 = N6
D103K = Z2
Q211 = 610X
D106 = LG
D110 = X4
==============
SRL221
ECRAN = CV320H2-F01 Rev.03
PCB = CV3202H2-F01-XC-4
IC9 = 2592H = LEVEL SHIFTER
IC1 = KV5616 = PROCESOR LVDS
IC4 = 24C32WP = MEMORIE NVM
IC3 = CAKDAE = GAMMA
IC2 = YC2703
Q3 = 702
Q1 = DMB
T3 = 1P
T8 = T4 = 2F
D8 = WE
D3 = D5 = D4 = A7
D1 = SMBJ / 13A
DT1 = DT2 = DT3 = V05
DT19 = M12A
D2 = SS34
==============
FL854
ECRAN = V320BJ8-Q01 Rev.C1
GT4128 = UX3 = MEMORIE NVM
INX IN1802A = UT1 = CONTROLER
INX IN518 = UP1 = CONTROLER
INX IN633 = US1 = CONTROLER
QX1 = K72
QP3 = NM / G
QP1 = M7A
DP24 = DP27 = G4
DP2 = DP3 = JB
DP12 = F06A
==============

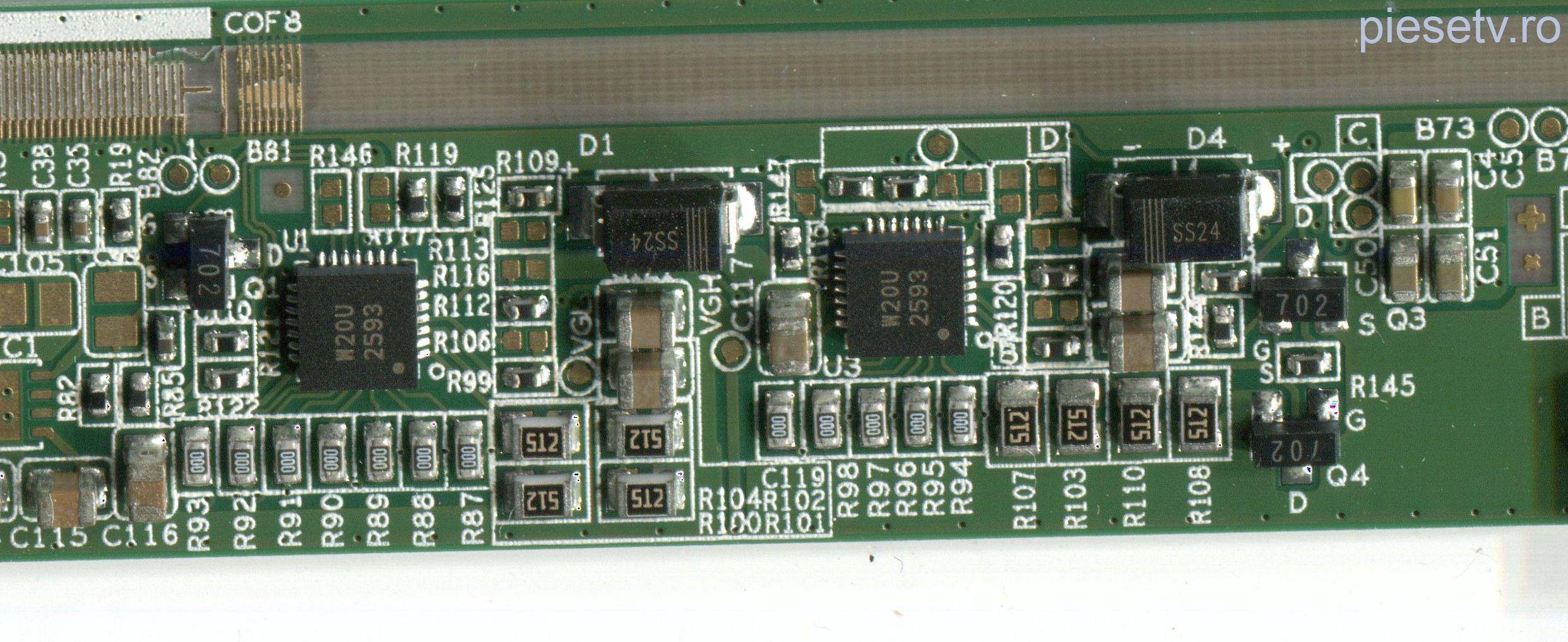

SRL110
ECRAN = CV500U2-T01 Rev.01
PCB = CV500U2-T01-XR-1
Q1 = Q4 = Q3 = 702
D1 = D4 = SS24
U1 = U3 = 2593
==============
FL449
ECRAN = V320BJ6-Q01 Rev.C1
UP1 = INX IN518 = CONTROLER SURSA DC-DC
DP12 = SX34F
QP3 = M7A
QP4 = K1P
DP32 = DP33 = JB
UX1 = UX2 = UX4 = UX5 = KG
UX3 = GT4128 = MEMORIE NVM
UT1 = INX IN1802A PROCESOR LVDS
QX1 = K72
=============
