Introducere »PCB / TCON» 7 module TCON atasate de ecran - pentru piese - pozitia PCB18




7 module TCON atasate de ecran - pentru piese - pozitia PCB18

in descriere aveti poze si lista cu toate integratele , tranzistoarele si diodele smd pe care le gasiti in acest pachet




Pe stoc: 1 buc
Numar produs: 00
pret nou:
99,0 LEI (TVA inclus ( nu suntem platitori de TVA ))

în coş:
  buc

PCB18
FL742
ECRAN = T320XVN02.G
PCB = 32T24-C0K CTRL

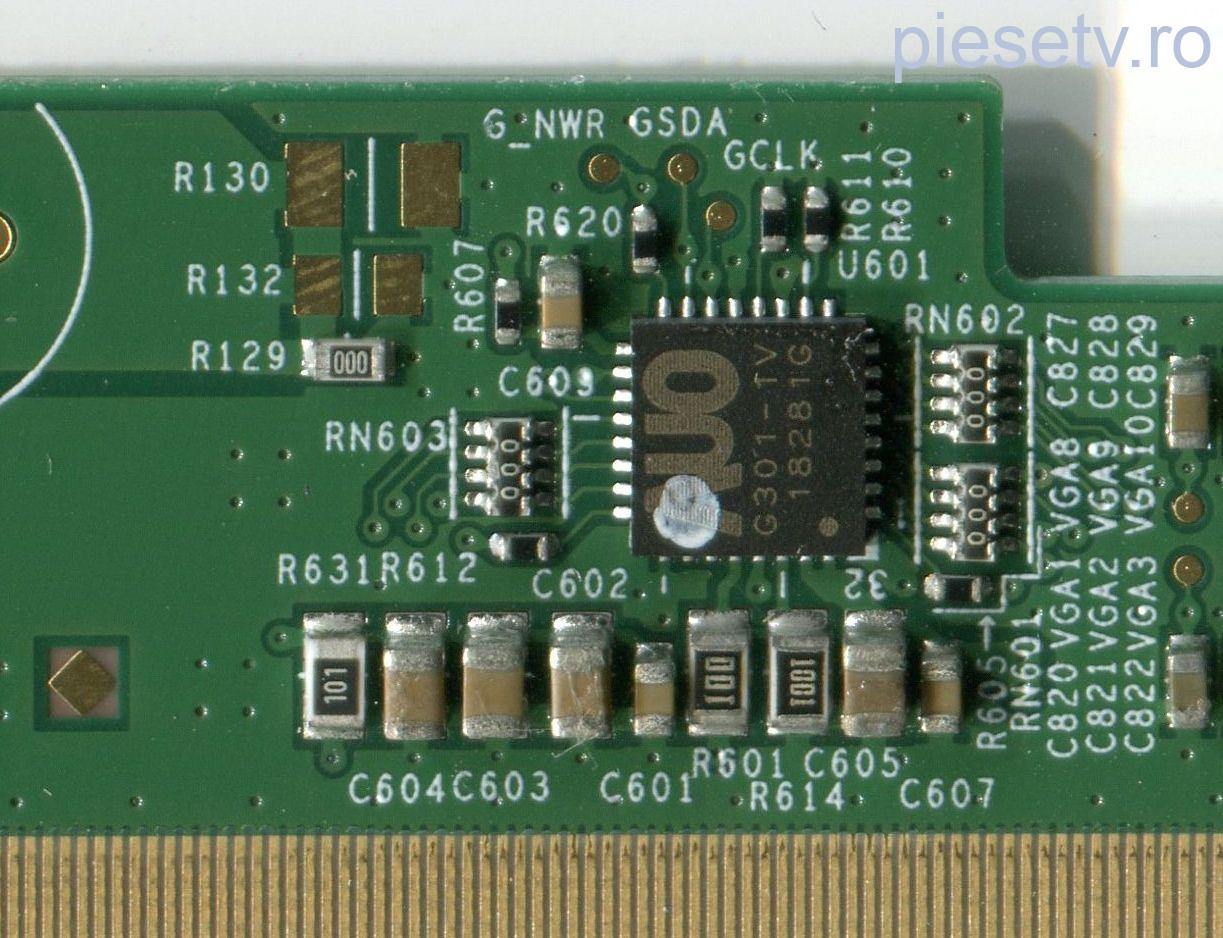

U601 = AUO G301-1V = GAMMA
U701 = AUO S302-1V = LEVEL SHIFTER

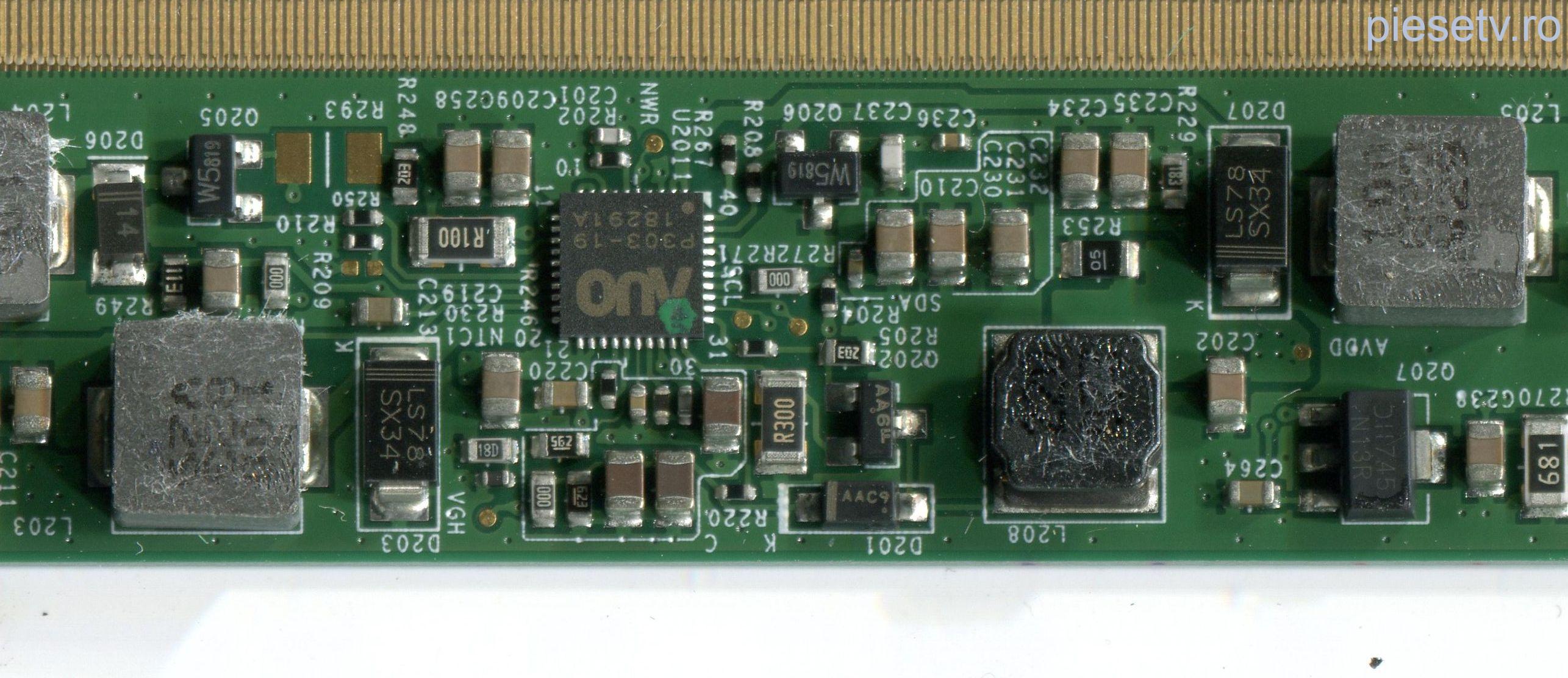

U201 = AUO P303-19 = CONTROLER SURSA DC-DC
U101 = i7814HP
U402 = 4328 = MEMORIE FLASH
U400 = AUO-11311 = PROCESOR LVDS
D110 = X4
Q805 = 1P
Q806 = 2F
D103 = ZA
D106 = LG
Q211 = 7P6
D401 = 4
Q207 = 745 / N13R
D207 = D203 = SX34
Q206 = Q205 = W5
Q202 = AA6
D201 = 26
S206 = 14
============
SRL32
ECRAN = CV580U3-T01 Rev.02
PCB = CV580U1-T01-XR-5
DT11 = DT10 = M12A / 1KM2
IC10 = YC2703
IC5 = 21100Q / 2531

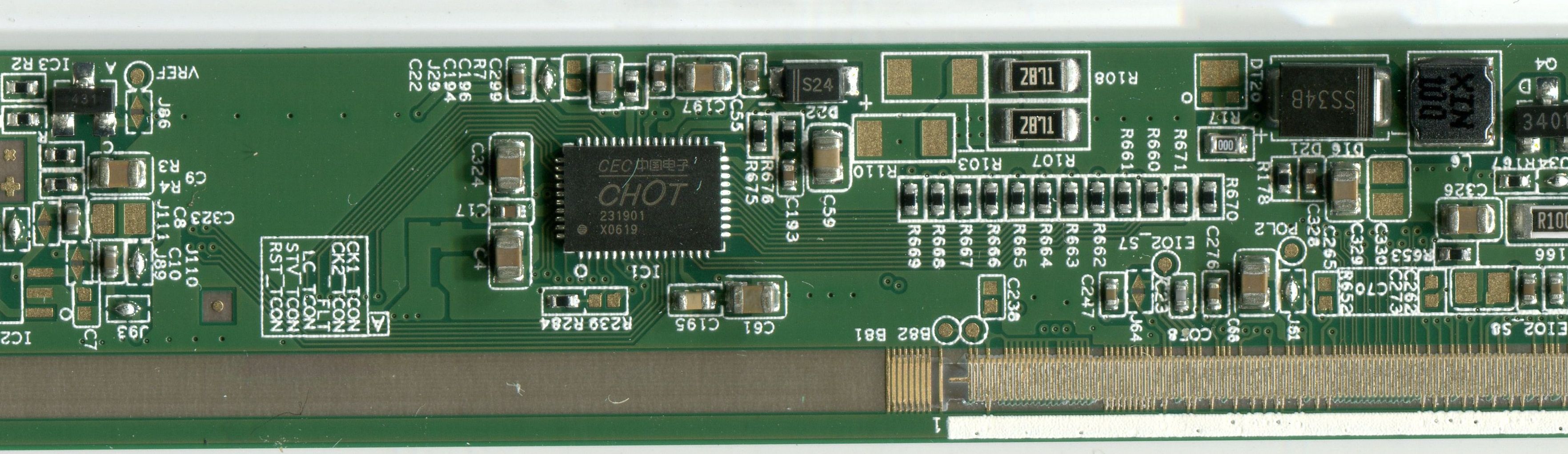

IC1 = CHOT 231901 = PROCESOR LVDS
IC3 = 431
DT3 = DT4 = DT5 = DT7 = DT9 = DT2 = ADM
D16 = D15 = SSL34B
D12 = D13 = D17= SS34B
D19 = SS24
D22 = S24
T4 = 1P
Q1 = Q28N03 / 4702MQI
Q3 = Q4 = 3401
Q5 = A36
============
SRL334
ECRAN = CV320H2-F01 Rev.03
PCB = CV320H2-F01-XC-4
IC1 = KV5616 = PROCESOR LVDS
IC2 = YC2703
IC3 = CAKDBC
IC9 = X08H / 2592H = LEVEL SHIFTER
DT19 = M12A / 1PT2
T2 = T4 = T8 = 2F
T1 = T3 = 1P
D2 = SS34
Q1 = DMB
Q3 = 702
D4 = D5 = D3 = A7
D8 = WE
DT1 = DT2 = DT3 = V05
D1 = SMBJ / 13A
IC4 = 24C32WP = MEMORIE NVM
============
SRL108
V320BJ8-Q01 REV.C1
GT4128 = UX3 = MEMORIE NVM
INX IN1802A = UT1 = CONTROLER
INX IN518 = UP1 = CONTROLER
INX IN633 = US1 = CONTROLER
QX1 = K7K
QP3 = 032 / 4672
QP1 = M7A
DP24 = DP27 = G4
DP2 = DP3 = JB
DP12 = EY
============
MG528
ECRAN = LC390TA2A 09
PCB = PANDA385L V02 RUNTKD070ZZP4 V1.0

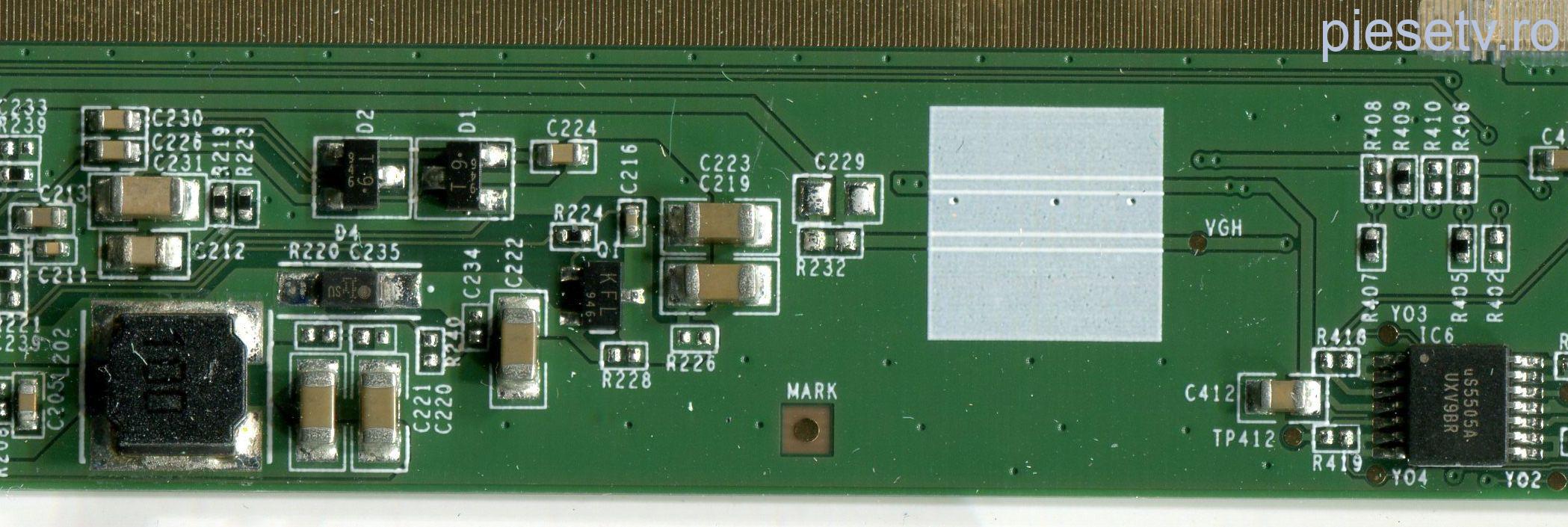

IC6 = uS5505A / 1X2945
IC5 = V50F / 5562A = CONTROLER SURSA DC-DC
IC3 = i7921 = GAMMA
IC4 = V48R / 9001F
IC2 = BL24C32A = MEMORIE NCM

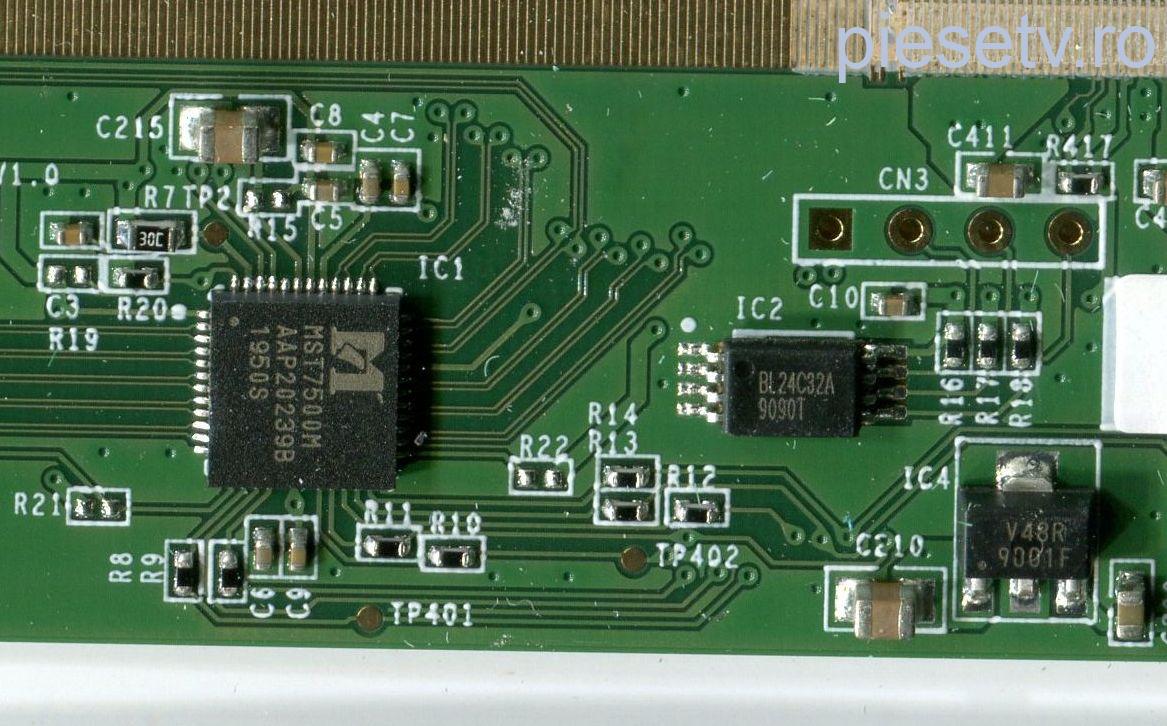

IC1 = MST7500M = PROCESOR LVDS
Q1 = KFL
D1 = D2 = D3 = T9
D4 = QS
D5 = SL
============
MG610
ECRAN = LSF320AN05-N01
PCB = 16Y_VGH11MB7S4LV0.1

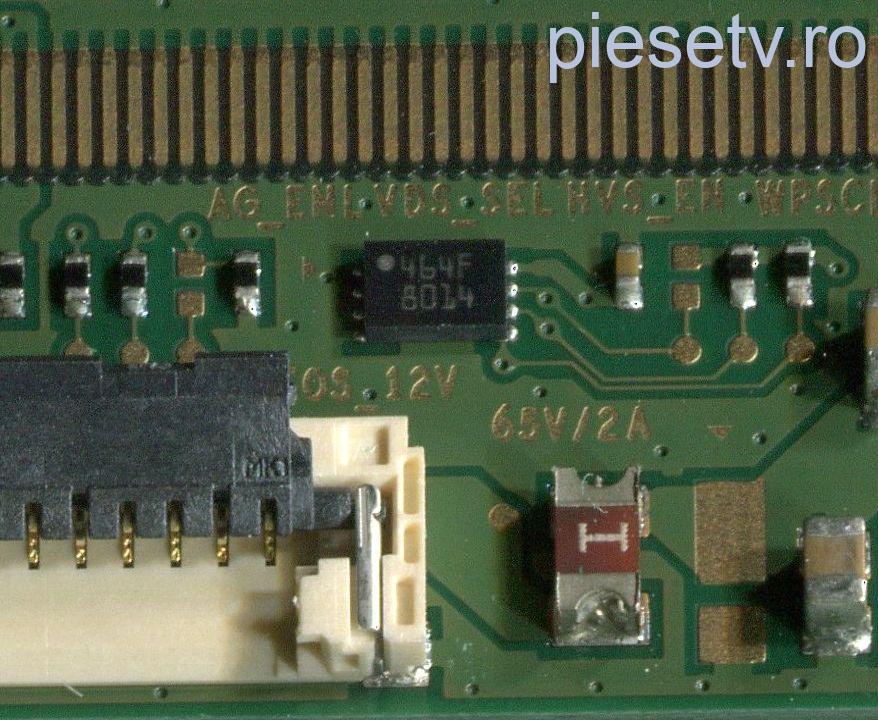

464F = MEMORIE NVM

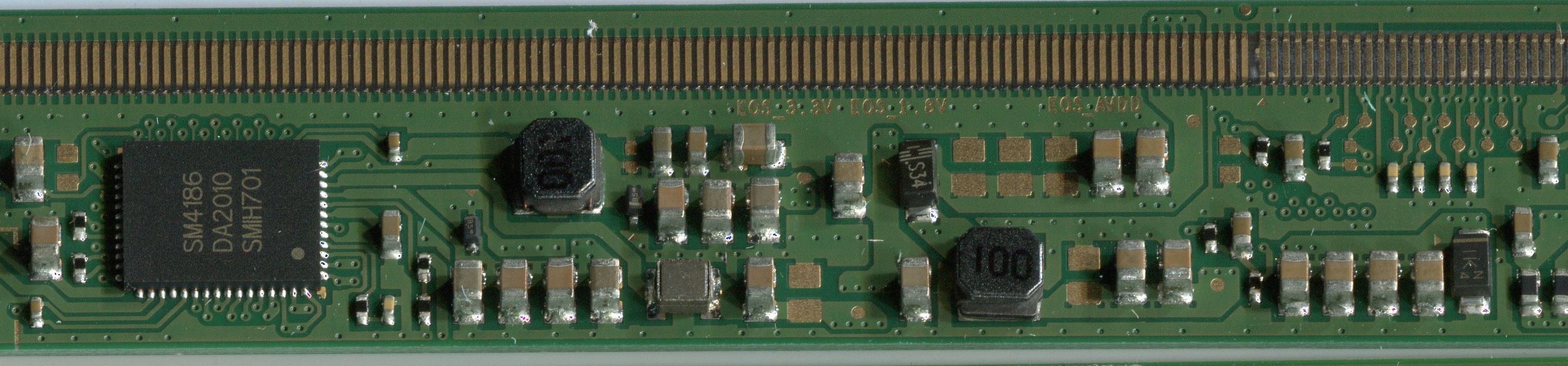

SM4186 = PROCESOR LVDS
S34 = DIODA
1K = DIODA
============
SRL114
ECRAN = CV500U2-T01 Rev.01
PCB = CV500U2-T01-XR-1
Q1 = Q4 = Q3 = 702
D1 = D4 = SS24
U1 = U3 = W44H / 2593
============
