7 module TCON atasate de ecran - pentru piese - pozitia PCB17

PCB17
SRL130
ECRAN = CV320H2-F01 Rev.01
PCB = CV320H2-F01-XC-3
IC9 = X08A / 2592H = LEVEL SHIFTER
IC4 = 432B-2GLI = MEMORIE NVM
IC1 = CHOT CCH1113A11H = PROCESOR LVDS
IC3 = CAKDAF = CONTROLER SURSA DC-DC + GAMMA
IC2 = YC2703
D8 = WE
T8 = T4 = T2 = 2F
T3 = T1 = 1P
D3 = D4 = D5 = A7
Q3 = 4002
Q1 = DMB
D1 = SMBJ / 13A
DT1 ~ DT3 = V05
DT19 = M12A / AKM4
===================

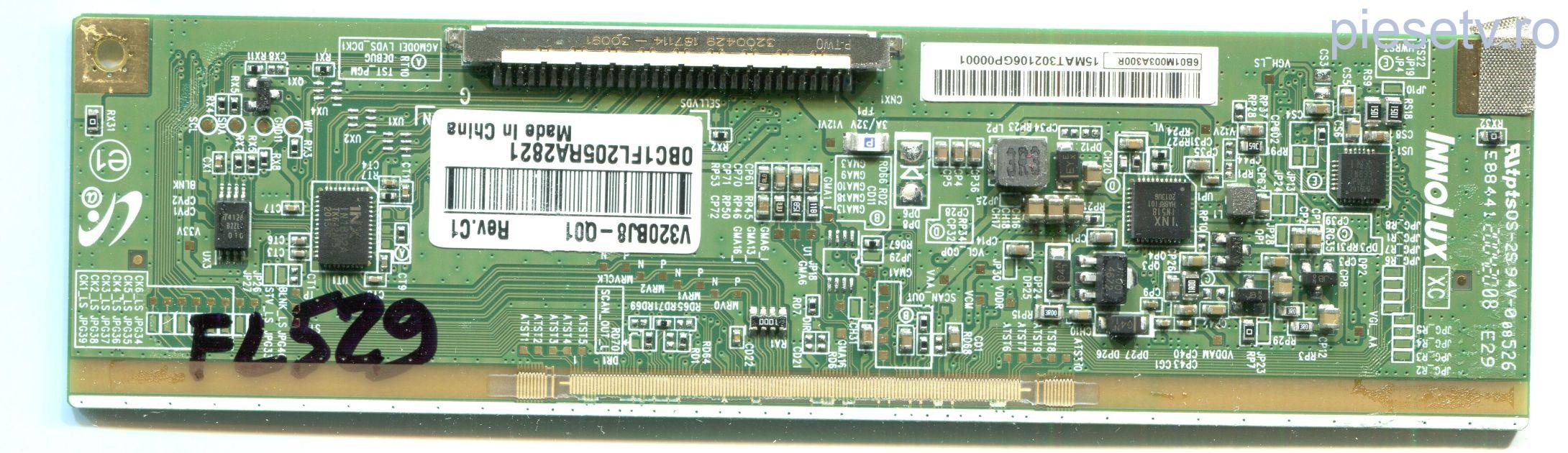

FL529
ECRAN = V320BJ8-Q01 Rev.C1
GT4128 = UX3 = MEMORIE NVM
INX IN1802A = UT1 = CONTROLER
INX IN518 = UP1 = CONTROLER
INX IN633 = US1 = CONTROLER
QX1 = K7K
QP3 = 032 / 4672
QP1 = M7A
DP24 = DP27 = G4
DP2 = DP3 = JB
DP12 = EY
===================
FL819
ECRAN = LSF320AN09-N03
PCB = 16Y_VGH11MB7S4LV0.1

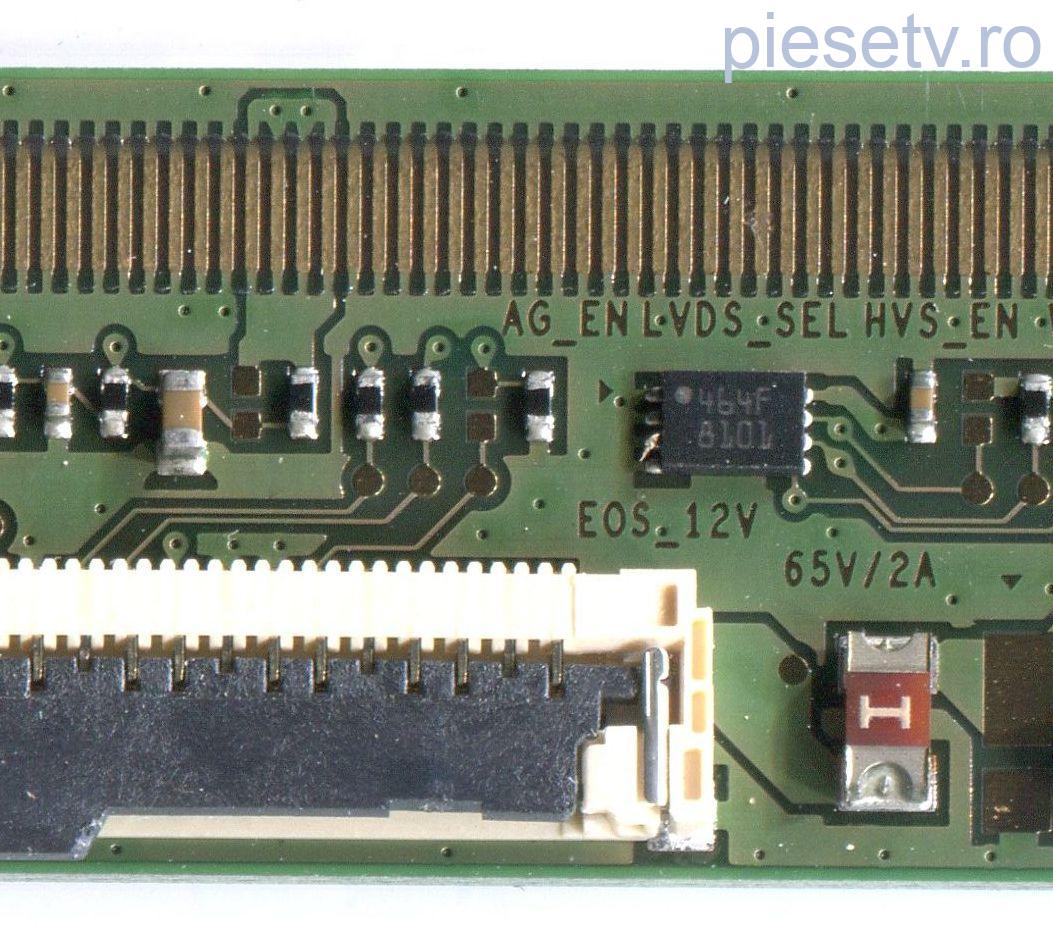

464F = MEMORIE NVM
SM4186 = PROCESOR LVDS + SURSA DC-DC
S34 = DIODA
1K = DIODA
===================
SRL243

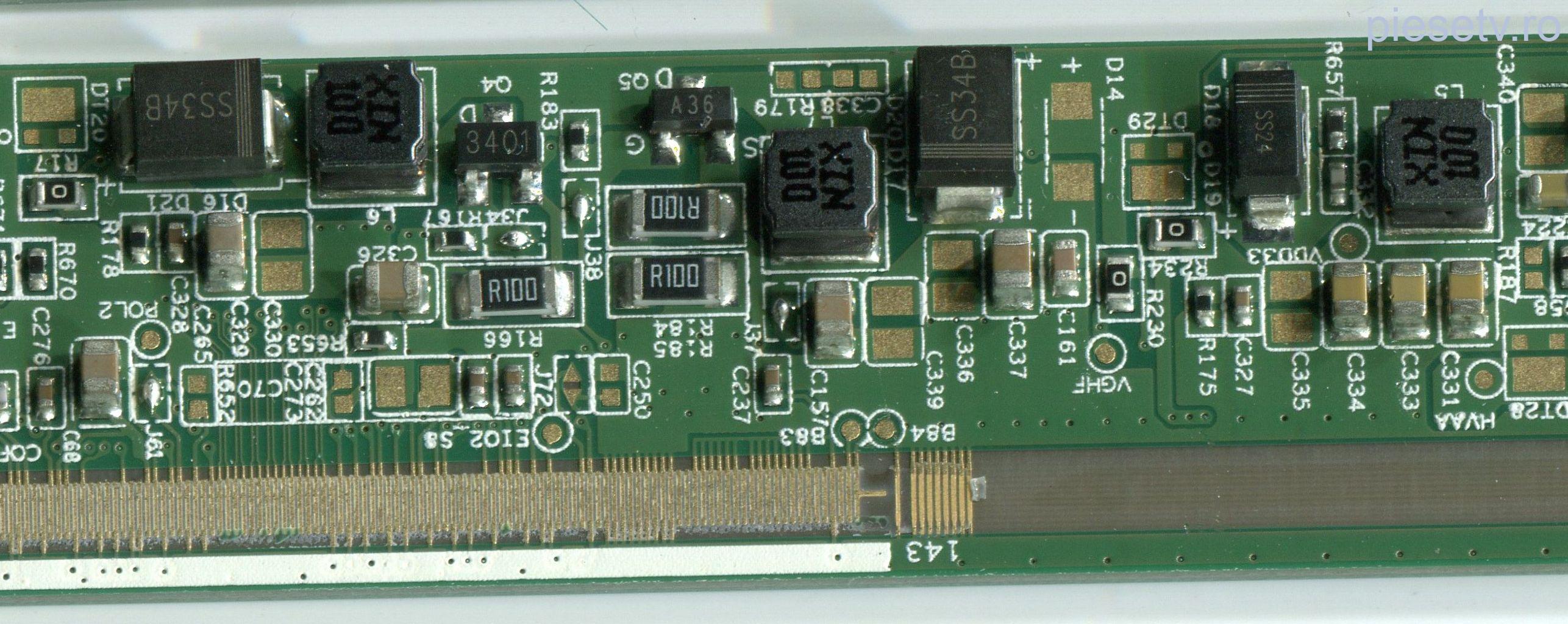

ECRAN = CV580U3-T01 Rev.02
PCB = CV580U1-T01-XR-5
DT11 = DT10 = M12A / 1PT2
IC10 = YC2703
IC5 = 21100Q / 2531

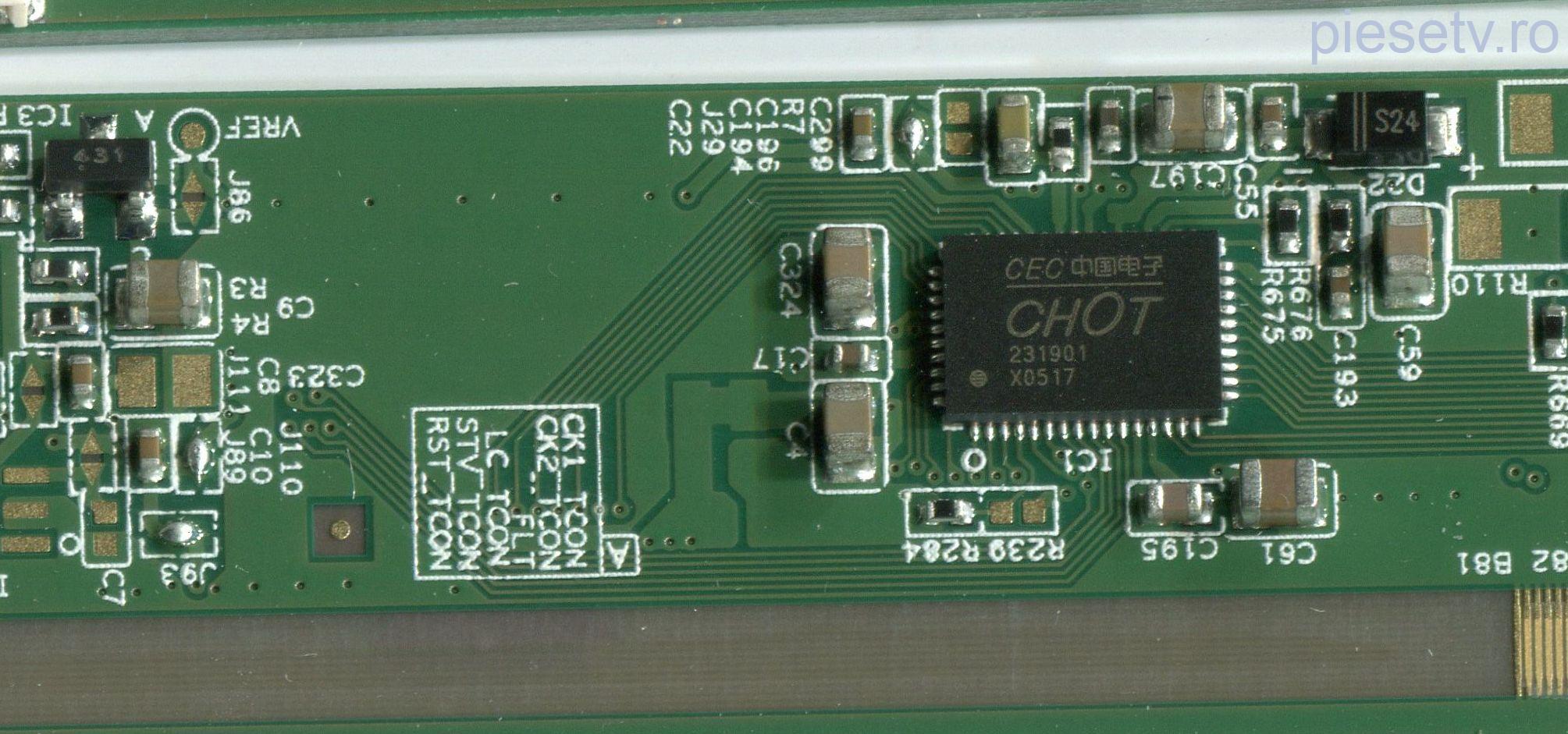

IC1 = CHOT 231901
IC3 = 431
DT3 = DT4 = DT5 = DT7 = DT9 = DT2 = ADM
D12 = D13 = D15 = SSL34B
D17 = D16 = SS34B
D19 = SS24
D22 = S24
T4 = 1P
Q1 = Q28N03 / 4703MQI
Q3 = Q4 = 3401
Q5 = A36
===================
FL422
ECRAN = LQ315T3HC54
PCB = RUNTK DUNTK6199TP
IC201 = BD8174MU
IC101 = BM9098
IC102 = T32 / 8531
DT2
34
D201 = 48
===================
FL556
ECRAN = CV500U2-T01 Rev.01
PCB = CV500U2-T01-XR-1
Q1 = Q4 = Q3 = 702
D1 = D4 = SS24
U1 = U3 = W253 / 2593
===================
MG448
ECRAN = T320XVN02.F
PCB = 32T24 C0S CTRL
U601 = AUO G301-19 = GAMMA
U701 = AUO S302-1V = LEVEL SHIFTER
U201 = AUO P303-19 = CONTROLER SURSA DC-DC
U101 = i7814HP

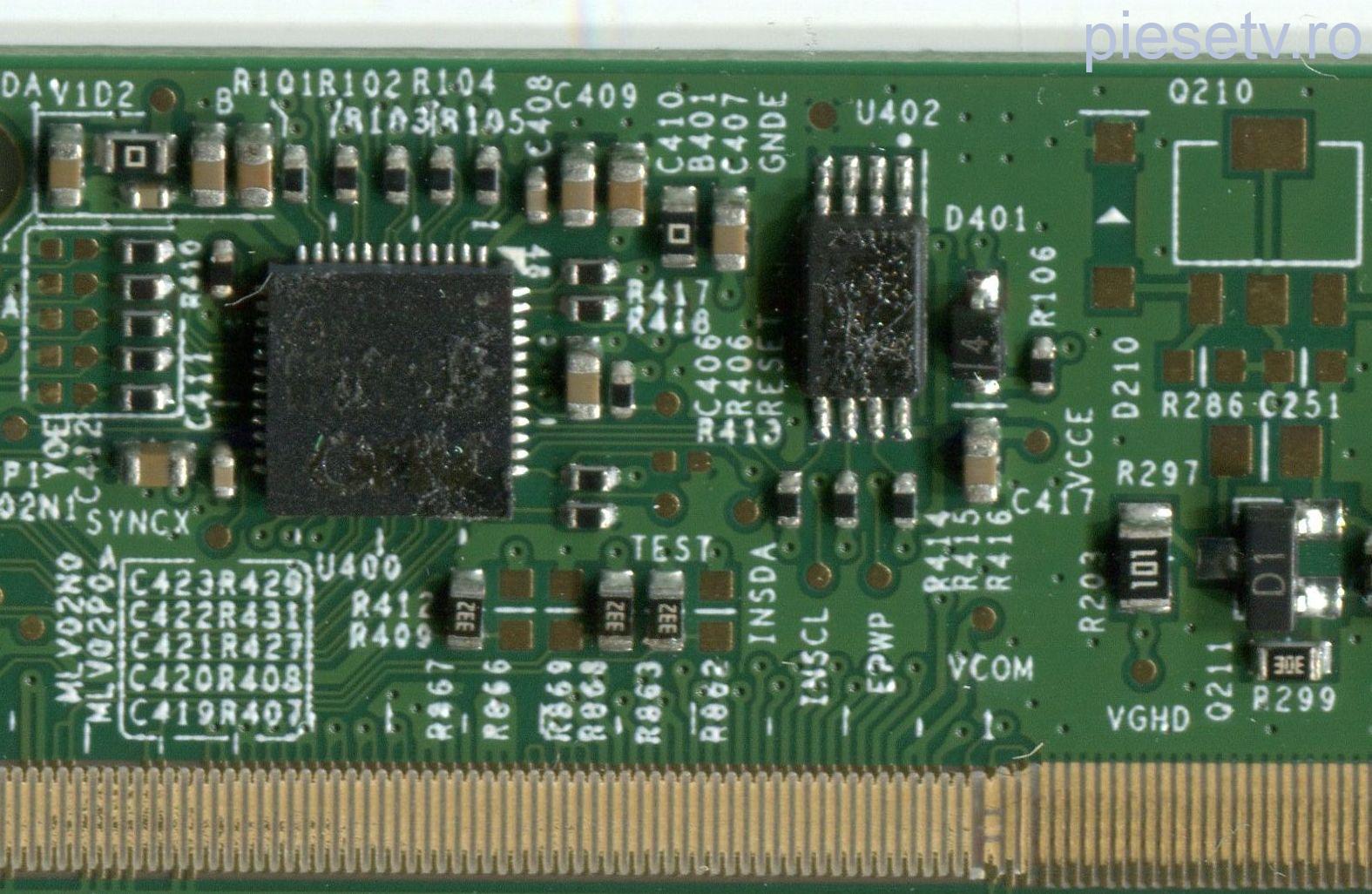

U402 = 4328 = MEMORIE FLASH
U400 = AUO-11311 = PROCESOR LVDS
D110 = X4
Q805 = 1P
Q806 = 2F
D103 = ZA
D106 = LS 77 / LG
Q211 = D1
D401 = 4
Q207 = D1664 / LS815
D207 = D203 = SX34
Q206 = Q205 = 25I23
Q202 = AA6
D201 = 26
S206 = A6
===================
