Introducere »PCB / TCON» 7 module TCON atasate de ecran - pentru piese - pozitia PCB15




7 module TCON atasate de ecran - pentru piese - pozitia PCB15

in descriere aveti poze si lista cu toate integratele , tranzistoarele si diodele smd pe care le gasiti in acest pachet




Pe stoc: 1 buc
Numar produs: 00
pret nou:
99,0 LEI (TVA inclus ( nu suntem platitori de TVA ))

în coş:
  buc

PCB15
FL827
ECRAN = V320BJ8-Q01 Rev.C1
GT4128 = UX3 = MEMORIE NVM
INX IN1802A = UT1 = CONTROLER
INX IN518 = UP1 = CONTROLER
INX IN633 = US1 = CONTROLER
QX1 = K72
QP3 = 032 / 4672
QP1 = M7A
DP24 = DP27 = G4
DP2 = DP3 = JB
DP12 = EY
=================
SRL336
ECRAN = CV320H2-F01 Rev.03
PCB = CV320H2-F01-XC-4
IC1 = KV5616 = PROCESOR LVDS
IC2 = YC2703
IC3 = CAKDBA
IC9 = X801 / 2592H = LEVEL SHIFTER
DT19 = M12A / 1KM4
T2 = T4 = T8 = 2F
T1 = T3 = 1P
D2 = SS34
Q1 = DMB
Q3 = 7002
D4 = D5 = D3 = A7
D8 = WE
DT1 = DT2 = DT3 = V05
D1 = SMBJ / 13A
IC4 = 432B-2GLI = MEMORIE NVM
===================

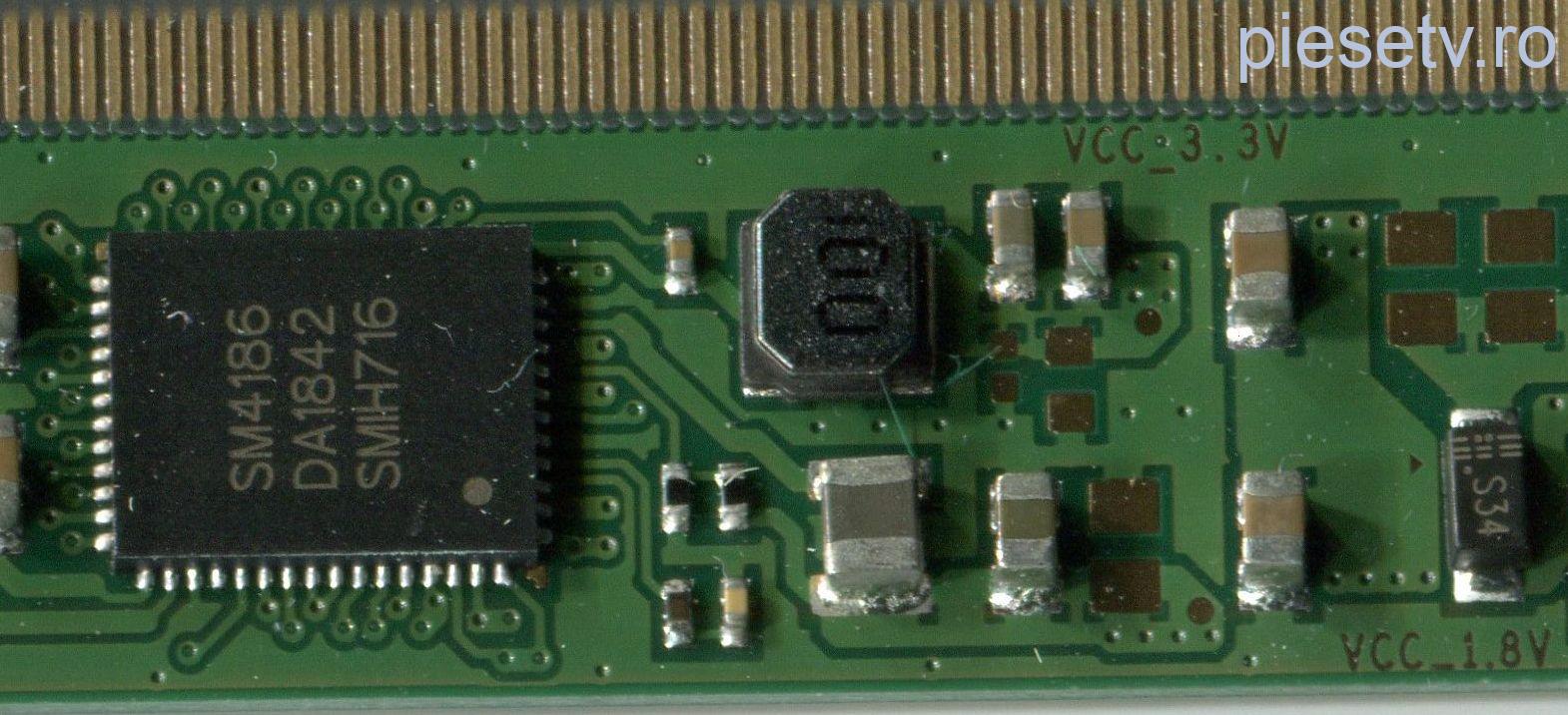

MG264
ECRAN = LSC320AN09-H03
PCB = 16Y_GH11MB7S4LV0.2
464F / 884 = MEMORIE NVM
SM4186 = PROCESOR LVDS
SS34 = DIODA
===================

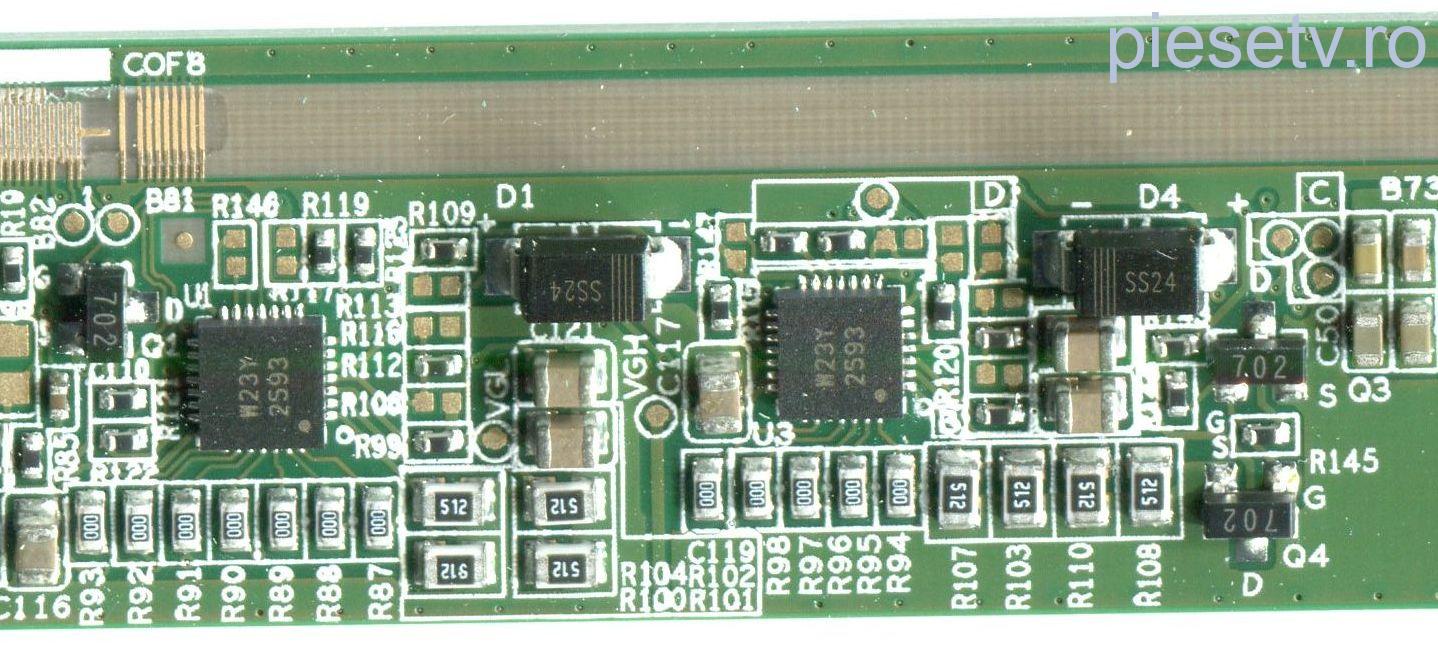

FL501
ECRAN = CV500U2-T01 Rev.01
PCB = CV500U2-T01-XR-1
Q1 = Q4 = Q3 = 702
D1 = D4 = SS24
U1 = U3 = W23Y / 2593
================

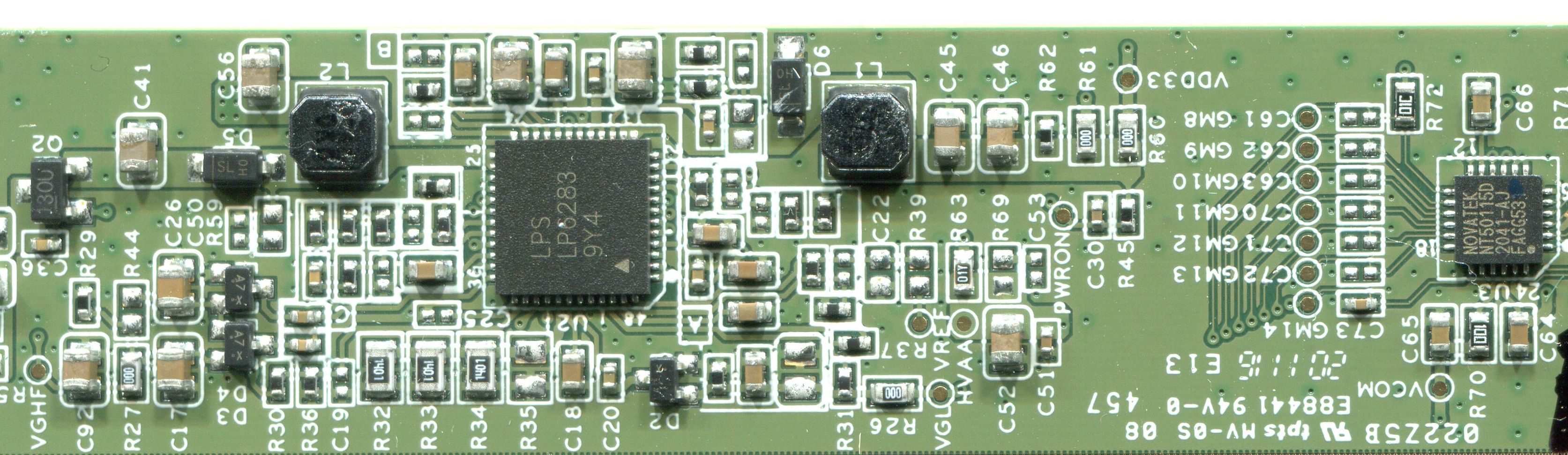

FL758
ECRAN = PT236AT02-1
PCB = PT236AT02-1-XC-4
U2 = LPS LP6283 = CONTROLER SURSA DC-DC
U3 = NOVATEK NT50115D = GAMMA
IC1 = FM24C32D = MEMORIE NCM
U1 = HKTH01 = PROCESOR LVDS
D6 = D5 = SL
D2 = D3 = D4 = A7
Q2 = 130J
Q1 = 701
D1 = B E / G0GY
================
XT163
ECRAN = V400HJ6-PE1 Rev.C2
PCB = INNOLUX XC
UG2 = INX IN603 C = GAMMA
UX9 = L40L / 5260M
UX1 ~ UX7 = C073N
UP1 = CM508 = CONTROLER SURSA DC-DC
UP2 = S72P18 / TSA51E
UT2 = S5L4006E = MEMORIE FLASH
UT1 = INX IN2810A = PROCESOR LVDS
DP7 = DP2 = KJE
QP2 = QP1 = KIP
DP12 = DP13 = SR34
===================
SRL251
ECRAN = CV580U1-T01 Rev.02
PCB = CV580U1-T01-XR-5
DT11 = DT10 = M12A / 1PT2
IC10 = YC2703
IC5 = W49G / 2531
IC1 = CHOT 231901
IC3 = 431
DT3 = DT4 = DT5 = DT7 = DT9 = DT2 = 1235
D12 = D13 = D15 = SSL34B
D17 = D16 = SS34B
D19 = SS24
D22 = S24
T4 = 1P
Q1 = Q28N03 / 4702MQI
Q3 = Q4 = 3401
Q5 = A36
================

OWE5YWE4Y
