Introducere »PCB / TCON» 7 module TCON atasate de ecran - pentru piese - pozitia PCB13
PCB13
FL719
V320BJ8-Q01 rev.C1
GT4128 = UX3 = MEMORIE NVM
INX IN1802A = UT1 = CONTROLER
INX IN518 = UP1 = CONTROLER
INX IN633 = US1 = CONTROLER
QX1 = K7K
QP3 = 032 / 4672
QP1 = M7A
DP24 = DP27 = F4
DP2 = DP3 = JB
DP12 = EY
===================
FL573
ECRAN = T320XVN02.G
PCB = 32T24 C0T CTRL

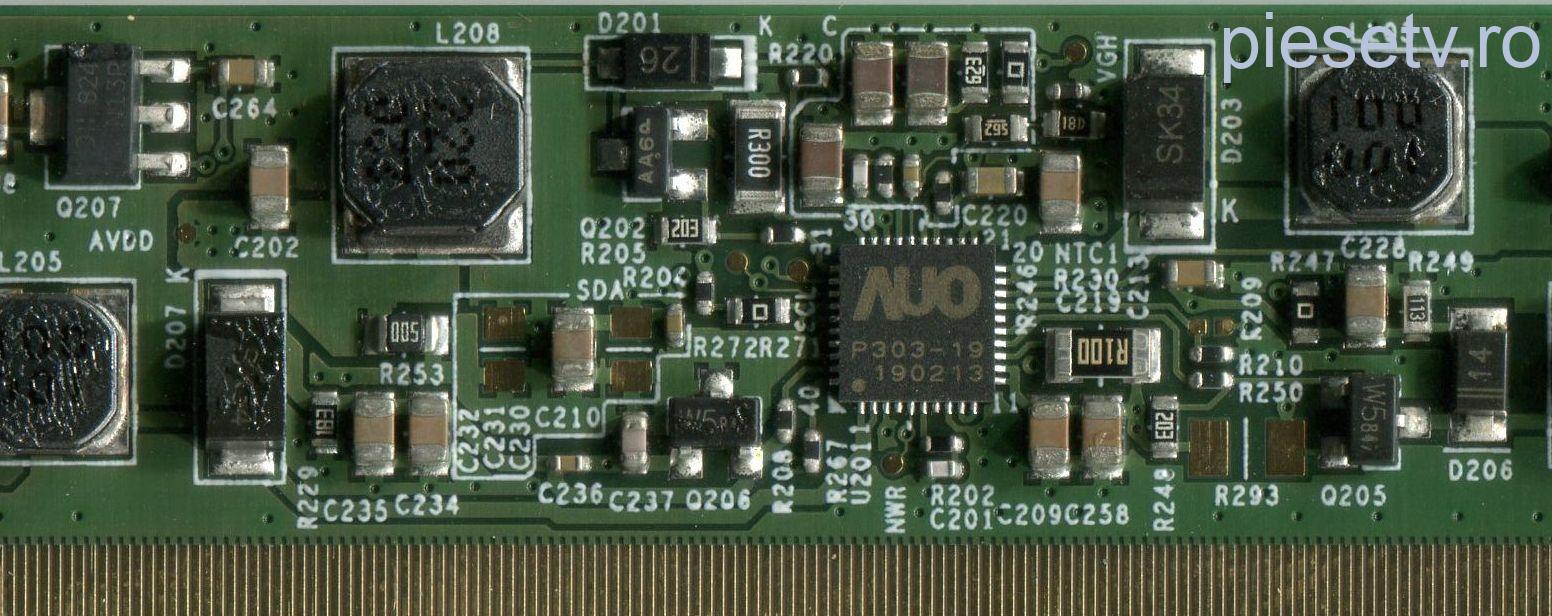

U201 = AUO P303-19 = CONTROLER SURSA DC-DC
U400 = AUO-11311 = PROCESOR LVDS
U402 = 4G32 = MEMORIE NVM

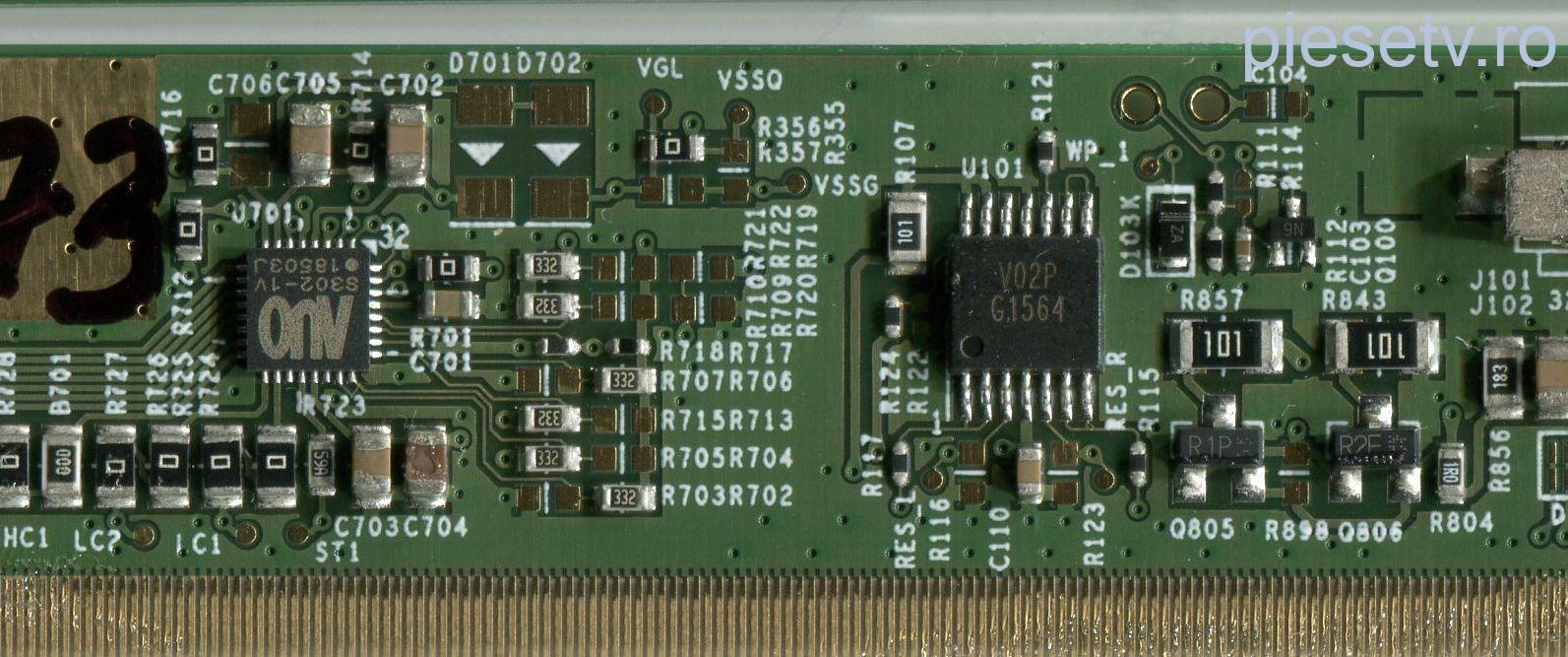

U101 = V02P / G1564
U701 = AUO S302-1V = LEVEL SHIFTER
U601 = AUO G202-1D = GAMMA
D203 = D207 = LS 00 / SX34
D206 = 14
D201 = 26
Q205 = Q206 = W5
Q202 = AA6
Q207 = 824 / N13R
Q805 = R1P
Q806 = R2F
Q100 = N6
D103K = ZA
Q211 = D1
D106 = LG
D110 = X4
====================
SRL128
ECRAN = PT320AT02-2 Ver.1.11
PCB = PT320AT02-2-XC-1
U2 = X116 / 2509 = GAMMA
U1 = HKTH01 = PROCESOR LVDS
U3 = 86703A = LEVEL SHIFTER
IC1 = P24C32C = MEMORIE NVM
D2 = D5 = K4
T2 = M2A
T1 = AL
D6 = D3 = D4 = JB
D1 = PJ109M / 929A
====================
SRL129
ECRAN = HV320WHB-F55 REV.4.0
PCB = 47-6002452 HV320WHB
IC6 = i2211
IC4 = i8973 = PROCESOR LVDS
IC3 = 1H=7H / 55H = LEVEL SHIFTER
D209 = D210 = B8
TR1 = 2A
TR2 = 1AM
D201 = D203 = S34
D208 = LD3

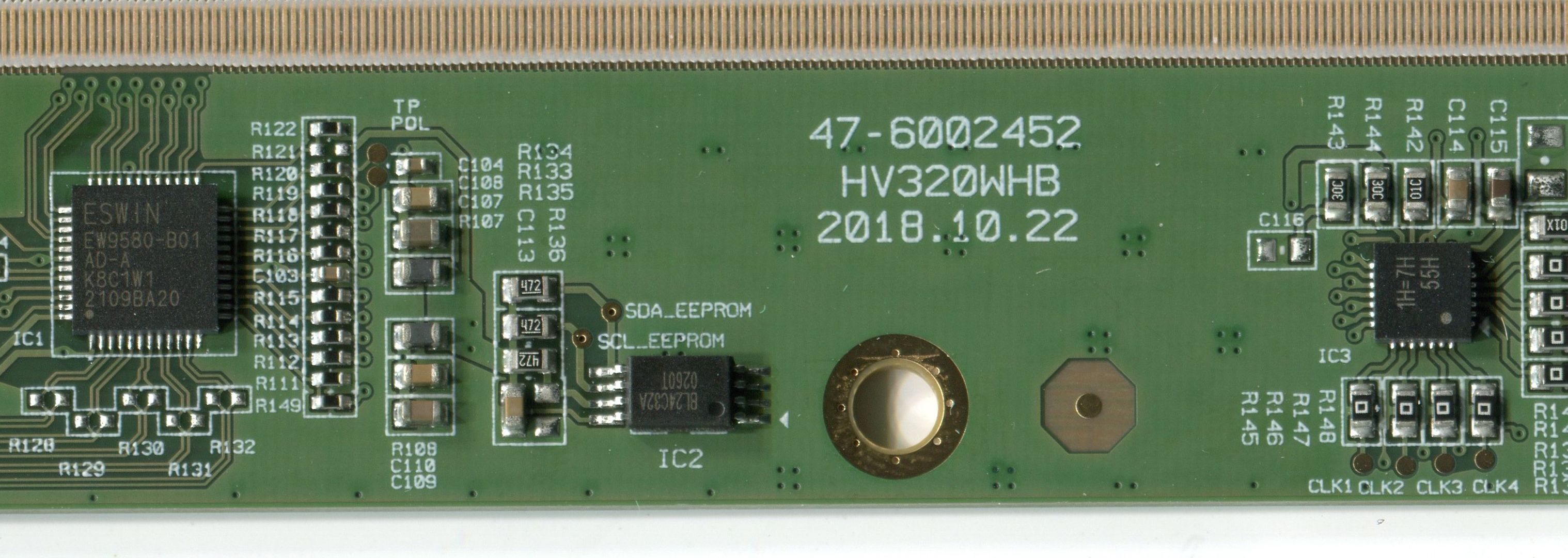

IC1 = ESWIN EW9580-B01
IC2 = BL24C32A = MEMORIE NVM
===================
MG496
ECRAN = V500HJ1-PE8 REV.C1
PCB = V500HJ1-XCME1
UG1 = CM603 = GAMMA
UG2 = Us5507P
UP1 = CM508 = CONTROLER SURSA DC-DC
UP2 = S72P12
UT2 = GT4128 = MEMORIE NVM

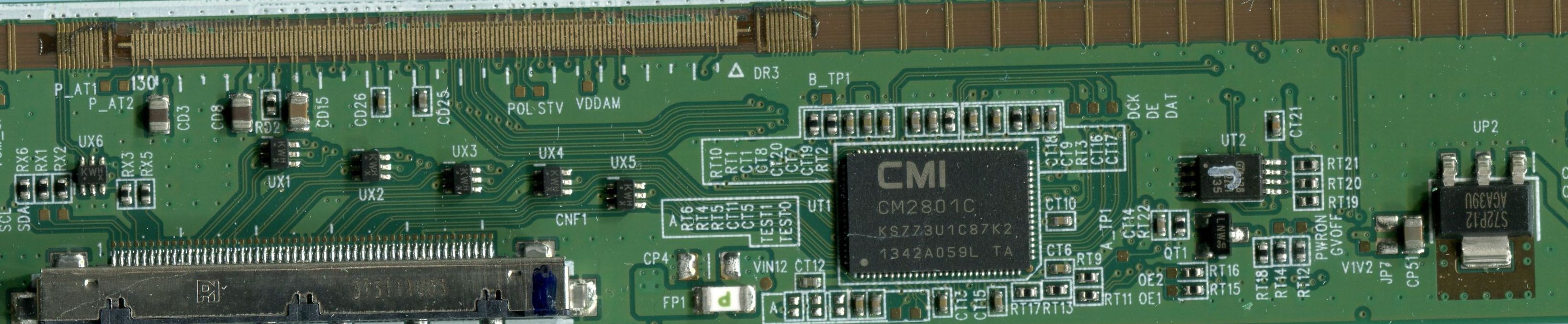

UT1 = CM2801C = PROCESOR LVDS
UX1 = UX2 = UX3 = UX4 = UX5 = UX6 = KW
QT1 = LNW
DP7 = DP2 = JB
QP1 = K2F
QP2 = K1P
DP11 = DP12 = PJ3406 / SR34
===================
SRL110
ECRAN = CV500U2-T01 Rev.01
PCB = CV500U2-T01-XL-1
IC5 = W19G / 1632
IC3 = 25Q80ASTIG = MEMORIE FLASH
IC2 = W19K / 1583
Q1 = Q2 = 702
ICP = 431
=====================
FL844
ECRAN = PT320CT01-1 Ver.1.0
PCB = PT320CT01-1-XC-2
IC2 = NOVATEK NT50115D = GAMMA
IC5 = NOVATEK NT50202 = LEVEL SHIFTER

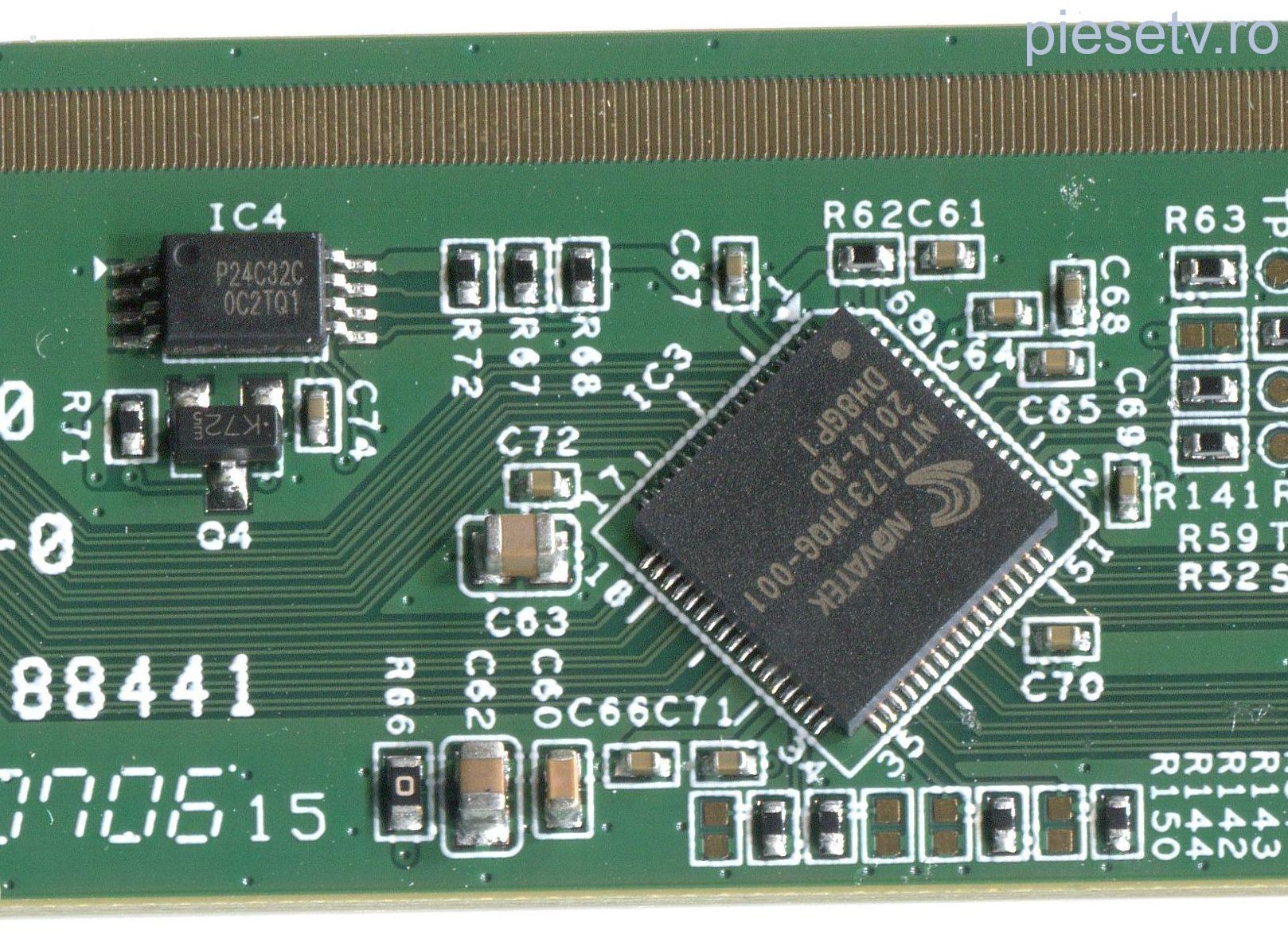

IC3 = NOVATEK NT71731MQG-001
IC4 = P24C32C = MEMORIE NVM
IC1 = NOVATEK NT50660 = CONTROLEER SURSA DC-DC
D2 = D3 = D4 = D5 = PJ0137 / SR24F
D1 = CH0d / A10A
Q4 = K72
Q1 = Q3 = A1A
Q2 = 680F
T3 = T1 = S1A
T2 = 2T / J
===================
