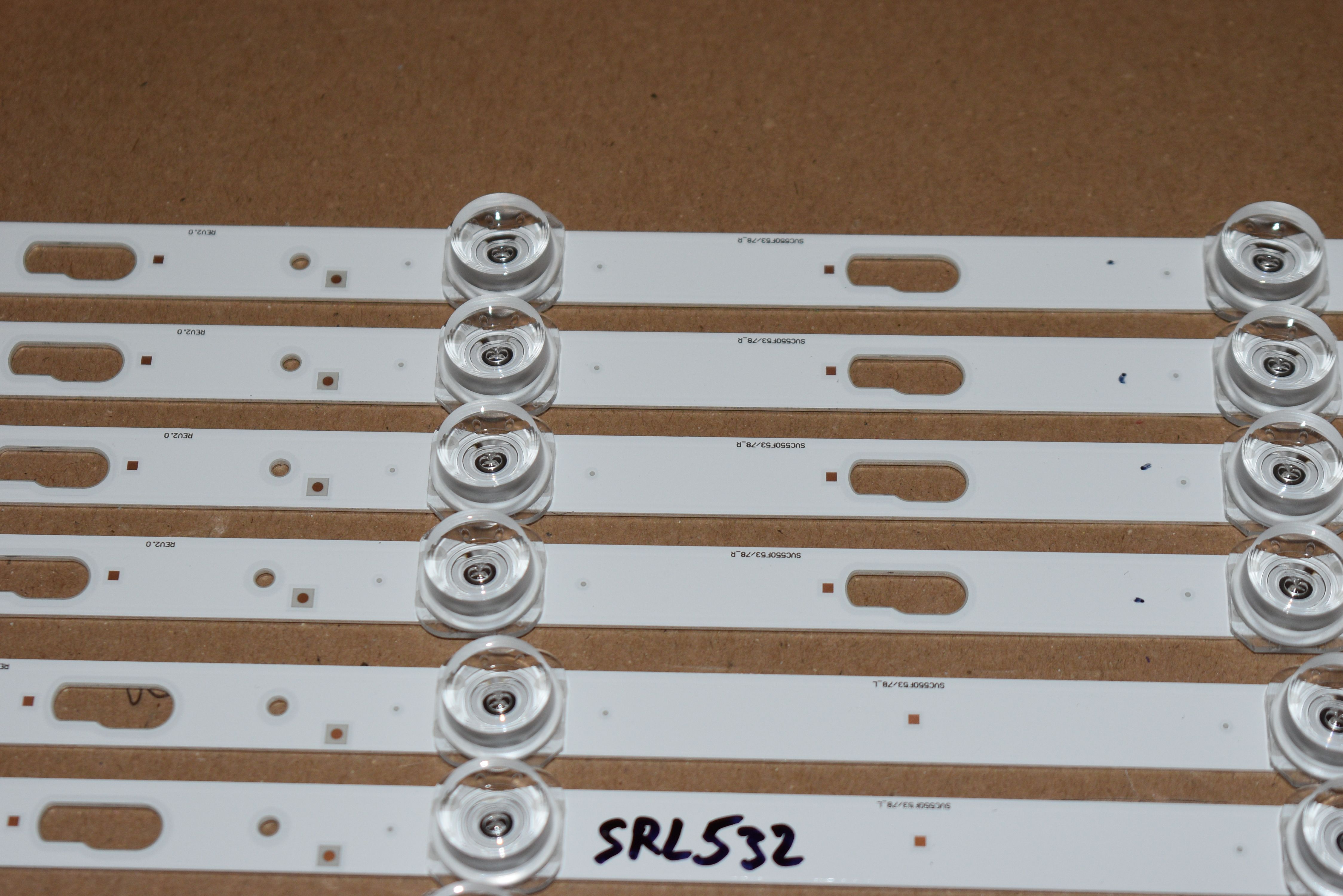

TU7K = SVC550F53-78_R  REV2.0 + TU7K = SVC550F53-78_L REV2.0 - SRL532









                      TU7K = SVC550F53-78_R  REV2.0 + TU7K = SVC550F53-78_L REV2.0 - SRL532

                                        TU7K = SVC550F53-78_R  REV2.0 + TU7K = SVC550F53-78_L REV2.0 - SRL532

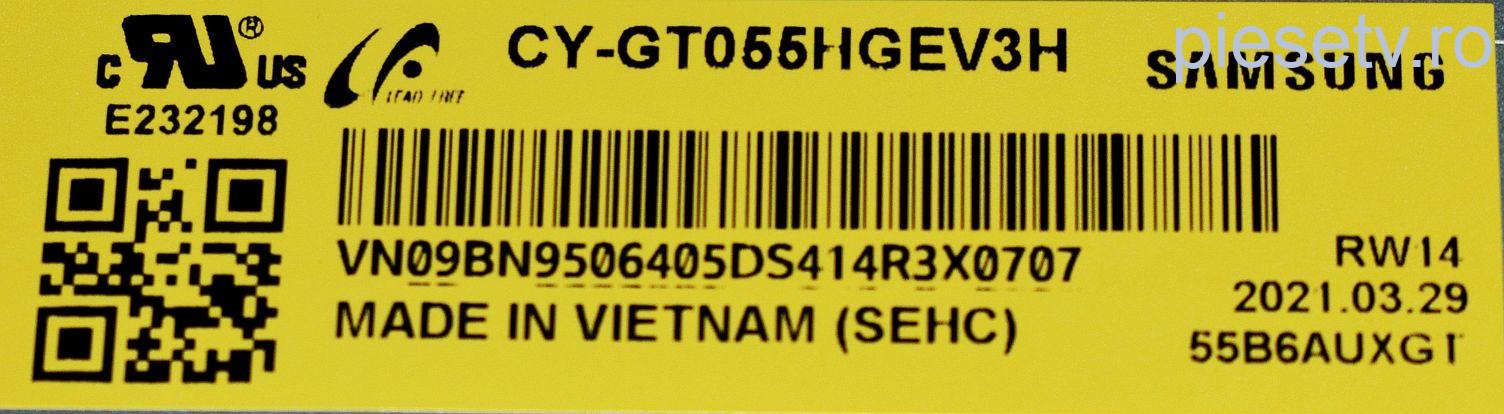

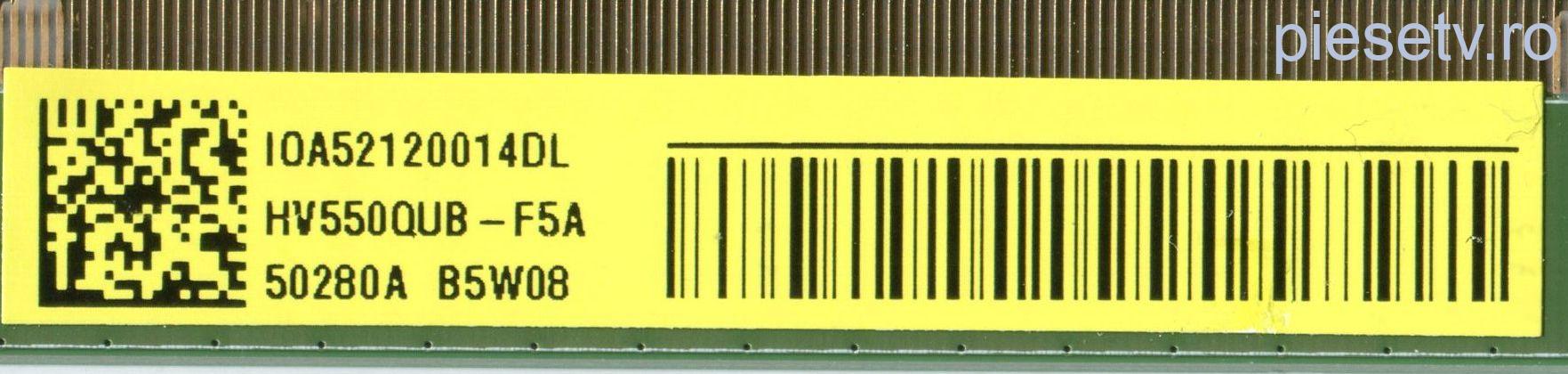

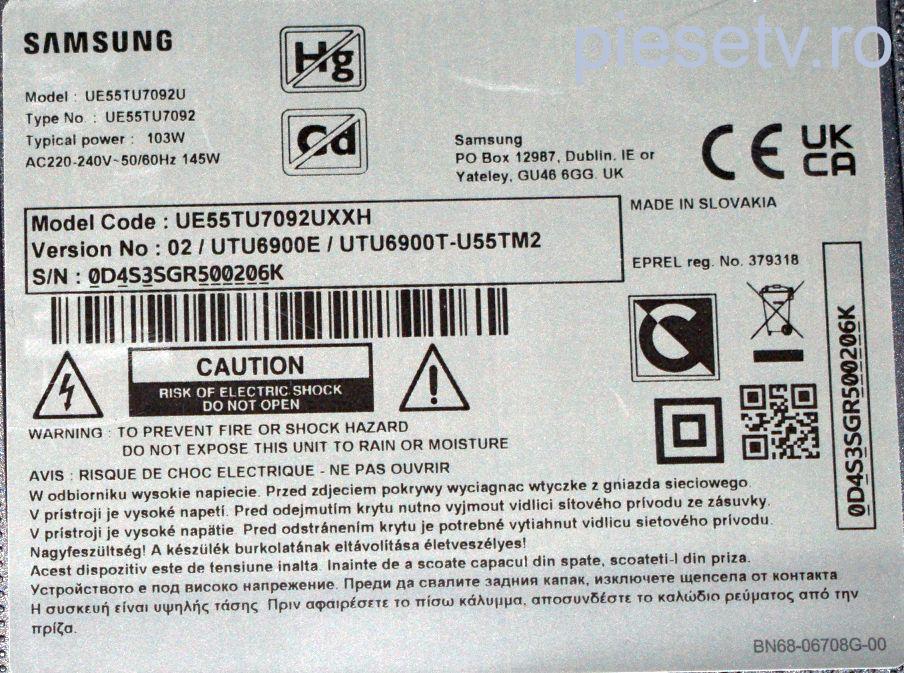

8 benzi LED pentru tv SAMSUNG UE55TU7092U-XXH cu ecran CY-GT055HGEV3H = HV550QUB-F5A




















                      Pe stoc:


                            1 buc






                      Numar produs:

                            00







                        pret nou:





        199,0 LEI

      (TVA inclus ( nu suntem platitori de TVA ))










în coş:





        buc

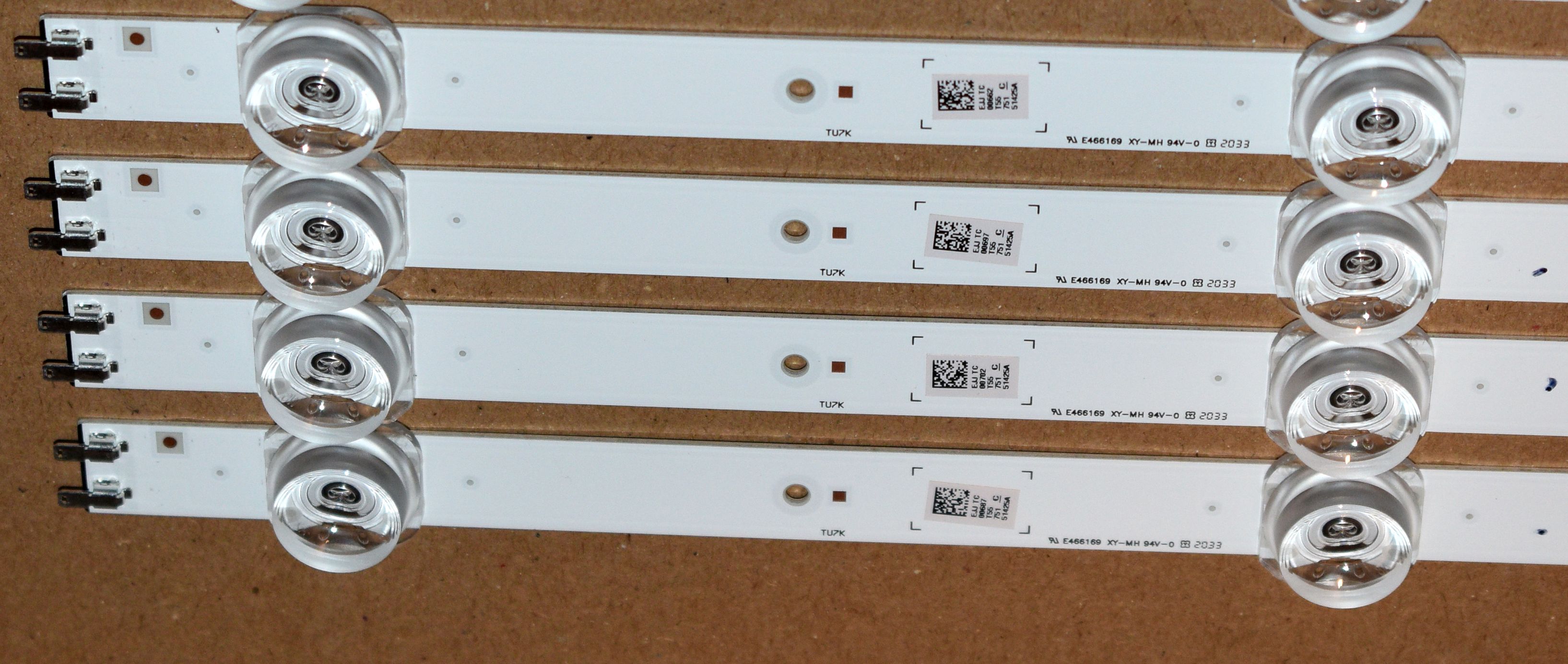

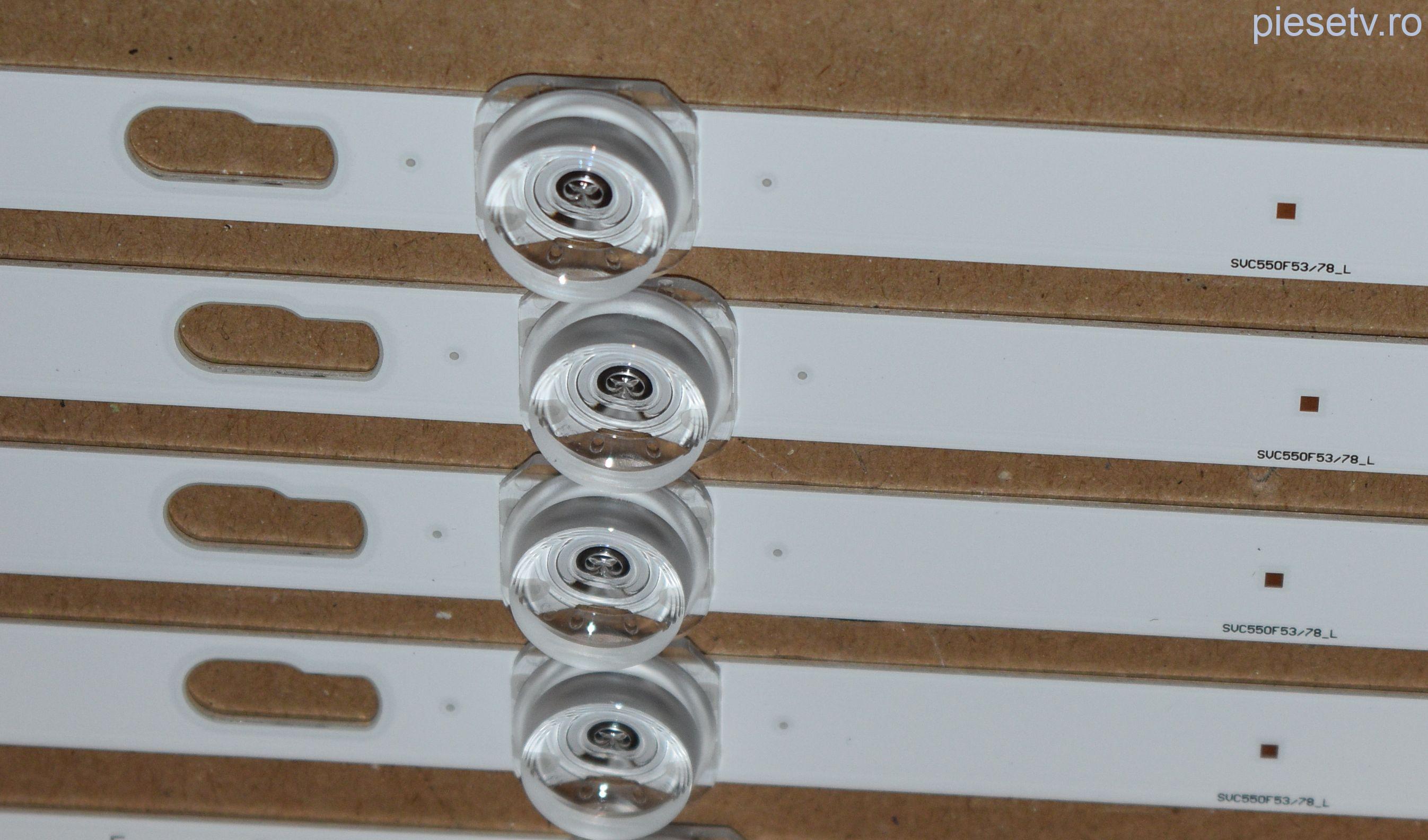

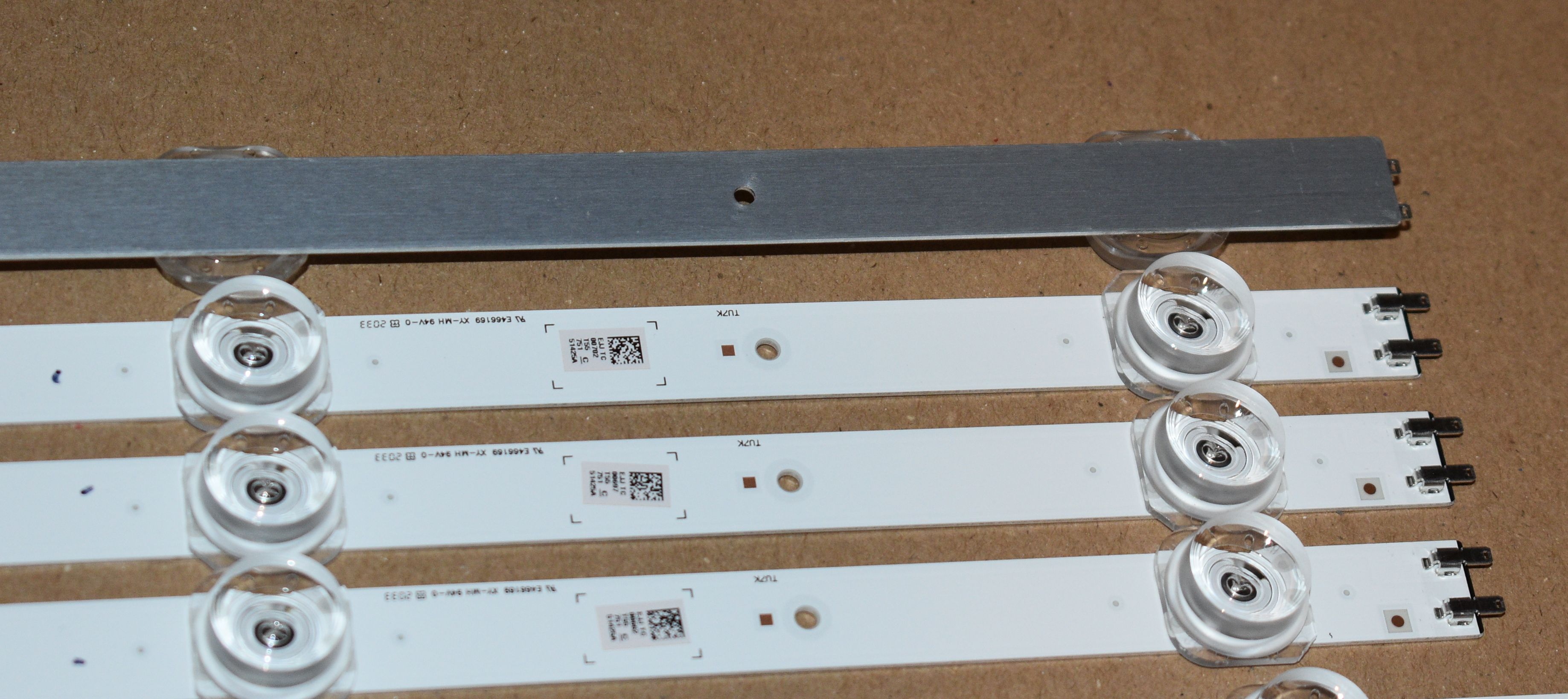

benzile sunt recuperate din tv NOU


backlight complet


echivalente :


TU7K = SVC550F53-78_L REV3.0


TU7K = SVC550F53-78_R REV3.0


TU7K = SVC550F53-78_R REV2.0


TU7K = SVC550F53-78_L REV2.0


L1_TU7K = E5_CFM_L5(1) = R1.0_TBJ_100_6_5pi = LM41-00871A / 907A


L1_TU7K = E5_CFM_R5(1) = R1.0_TBJ_100_6_5pi = LM41-00872A / 908A


55L R00


55R R00


echivalente si cu 4 benzi intregi cu 10 led-uri fiecare :


CRH-P55S630300410099-REV1.3


sau


CRH-P55S63030041002B-REV1.1


folosite si in tv :


SAMSUNG UE55TU7072U-XXH cu ecran CY-GT055HGEV2H = HV500QUB-F5A


SAMSUNG UE55TU7172U-XXH cu ecran CY-GT055HGLV1H = LSF550FN13-Q02
